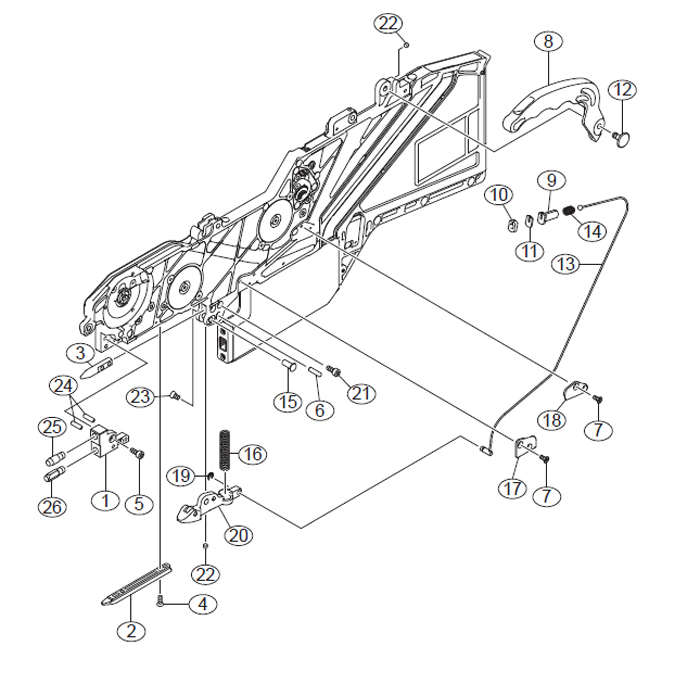

SS FEEDER HANDLE

The company has developed intelligent Yamaha YS12/YS12F/YS12P/YS24/YS24X/YS88/YS100/YC8/YSM40 speed Modular Mounter Electric / Electronic SS / ZS models feeders consumable accessories.
Japanese original imported technology, quality assurance, and the same as the original life, domestic price, welcome to inquire!

No. Part No. Part Name Q'ty Remarks Change Compati.
1 KHJ-MC103-02 BLOCK,FRONT 1
2 KHJ-MC104-00 RAIL,UNDER 1
3 KHJ-MC105-00 PIN,TAIL 1
4 KHJ-MC10F-00 SCREW,FLAT HEAD 2
5 KHJ-MC10M-00 BOLT,HEX. S/H 2
6 KHJ-MC139-00 SHAFT,IDLE GEAR 1 1
7 KHJ-MC16J-00 SCREW,FLAT HEAD 6
8 KHJ-MC181-00 HANDLE 1
9 KHJ-MC182-00 TENSION,WIRE 1 1
10 KHJ-MC183-00 SPACER,TENSION 1 1
11 KHJ-MC184-00 SPACER,TENSION 2 3
12 KHJ-MC185-00 PIN,HANDLE 1
13 KHJ-MC186-00 WIRE,UNCLAMP 1
14 KHJ-MC187-00 SPRING,TENSION 1
15 KHJ-MC189-00 PIN,CLAMP 1
15-1 KHJ-MC189-01 PIN,CLAMP 1 (2008/6/25) NG
16 KHJ-MC18A-00 SPRING,CLAMP 1
17 KHJ-MC18B-00 COVER,WIRE 1 1
18 KHJ-MC18C-00 COVER,WIRE 2 1
19 KHJ-MC18F-00 CIRCLIP (E) 1
20 KHJ-MC18H-00 CLAMP LEVER ASSY. 1
21 91312-03008 BOLT HEX.SOCKET HEAD 2
22 92A08-03305 SCREW,SET 2
23 98702-03006 SCREW FLAT HEAD 1
24 99480-03010 PIN,PARALLEL 2
23 98702-03006 SCREW FLAT HEAD 1
24 99480-03010 PIN,PARALLEL 2
25 KHJ-MC10S-00 PIN,LOCATE 1 1
26 KHJ-MC10T-00 PIN,LOCATE 2
