KHJ-MC10V-00 0.02MM厚度 YS系列贴片机配件 YSM系列电动FEEDER配件 YSM10贴片机配件
发布时间:2019-6-11 17:33:49 阅读:22

KHJ-MC10V-00,0.02MM厚度
YS系列贴片机配件 YSM系列电动FEEDER配件 YSM10贴片机配件

佳万兴电子有限公司

手机/微信:139 2370 5220 张先生
手机/微信:150 1272 2635 单小姐
手机/微信:137 1361 1873 张先生

YAMAHA二手贴片机,雅马哈YG12,YG12F,YS12,YS24,YS88,YS100,YSM10,YSM20,YSM20R,YSM40,YSM40R贴片机原装配件,雅马哈贴片机维修,YAMAHA贴片机马达,移动相机,吸嘴杆,电磁阀,吸嘴,马达,板卡,SS款飞达,ZS款FEEDER,在线交换台车,离线上料平台,SS/ZS飞达校正仪器,其他日本YAMAHA原装配件类

专业YAMAHA SS/ZS款电动飞达配件
专业YAMAHA 贴片机所有的机器配件
专业YAMAHA CL/FT/FS2款飞达8MM,12/16MM,24MM,32MM,44MM,56MM,72MM,88MM,104MM FEEDER.
专业YAMAHA SS款电动4MM,8MM,12/16MM,24MM,32MM,44MM,56MM,72MM,88MM,104MM FEEDER.
专业YAMAHA ZS款电动4MM,8MM,12/16MM,24MM,32MM,44MM,56MM,72MM,88MM,104MM FEEDER.
专业YAMAHA 贴片机YSM40R,YSM20R,YSM20,YSM10,YS100,YS88,YS24X,YS24,YS12,YS12F,YG12,YG12F贴片机配件.
专业YAMAHA 贴片机YG200,YG300,YG100,YV100XGP,YV180XG,YV88XG,YV100X,YV100E贴片机配件
专业YAMAHA 吸咀杆,吸嘴,台车,飞达上料车,扫描相机,固定相机,MARK相机,感应器,汽缸,电磁阀,马达,板卡,过滤棉,NSK保养油,白密封油,所有配件类



NO Parts_No. Parts_Name Q_ty Remarks Change Compati
1 KLJ-MC10W-00 FRONT BLOCK ASSY. 1
2 90990-01J042 BOLT,HEX. S/H 2
3 KHJ-MC105-00 PIN,TAIL 1
4 91312-03008 BOLT HEX.SOCKET HEAD 2
5 KHJ-MC106-00 PLATE,UNDER 1
6 KHJ-MC107-00 SHIM,FRONT BLOCK 1 1 T0.01 <Note-1>
7 KHJ-MC108-00 SHIM,FRONT BLOCK 2 1 T0.05 <Note-1>
8 KHJ-MC10G-00 SHIM,FRONT BLOCK 3 1 T0.10 <Note-1>
9 KHJ-MC10U-00 SHIM,FRONT BLOCK 4 1 T0.03 <Note-1>

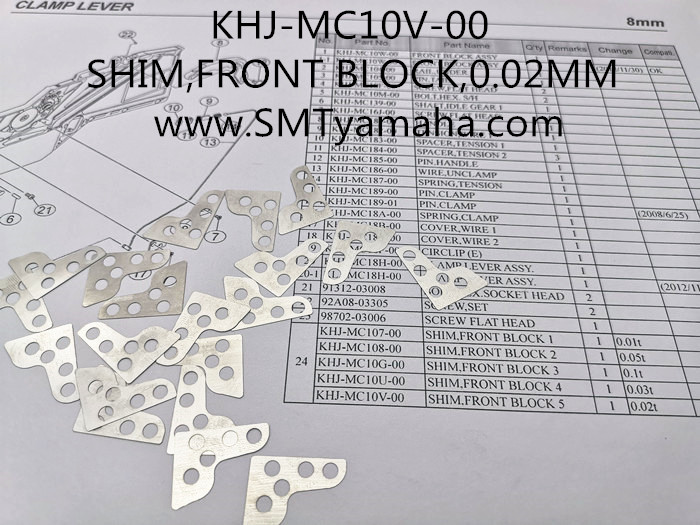

10 KHJ-MC10V-00 SHIM,FRONT BLOCK 5 1 T0.02 <Note-1>
11 KHJ-MC109-00 SHIM,PLATE UNDER 1 1 T0.01 <Note-1>
12 KHJ-MC10A-00 SHIM,PLATE UNDER 2 1 T0.05 <Note-1>
13 KHJ-MC139-00 SHAFT,IDLE GEAR 1 1
14 KLJ-MC1C1-00 PLATE,SPRING ASSY. 1
15 KHJ-MC1C3-00 SCREW 2
16 KLJ-MC1F3-00 BRKT.,REEL HOLDER 1
17 90990-09J008 SCREW,FLAT HEAD 7
18 KHJ-MC183-00 SPACER,TENSION 1 1
19 KHJ-MC184-00 SPACER,TENSION 2 1 <Note-1>
20 KLJ-MC186-00 WIRE,UNCLAMP 1
21 KHJ-MC187-00 SPRING,TENSION 1
22 KLJ-MC18H-00 CLAMP LEVER ASSY. 1
23 KHJ-MC189-01 PIN,CLAMP 1
24 KHJ-MC18J-00 SCREW,FLAT HEAD 1
25 KHJ-MC18A-00 SPRING,CLAMP 1
26 KLJ-MC18B-00 COVER,WIRE 1 1
27 KLJ-MC18C-00 COVER,WIRE 2 1
28 KLJ-MC18K-00 LEVER,UNCLAMP ASSY. 1
29 KLJ-MC18L-00 PIN,LEVER UNCLAMP 1
30 90990-14J001 CIRCLIP 2
31 98707-03006 SCREW,FLAT HEAD 2
32 92A08-03306 SCREW,SET 1
