i-PULSE*YAMAHA M10/M20/S10/S20 F3款电动送料器配件

厂家直销YAMAHA SS款/ZS款电子智能送料器配件。

雅马哈YS12/YS12F/YS12P/YS24/YS24X/YS88/YS100/YSM20/YSM40贴片机Feeddr配件

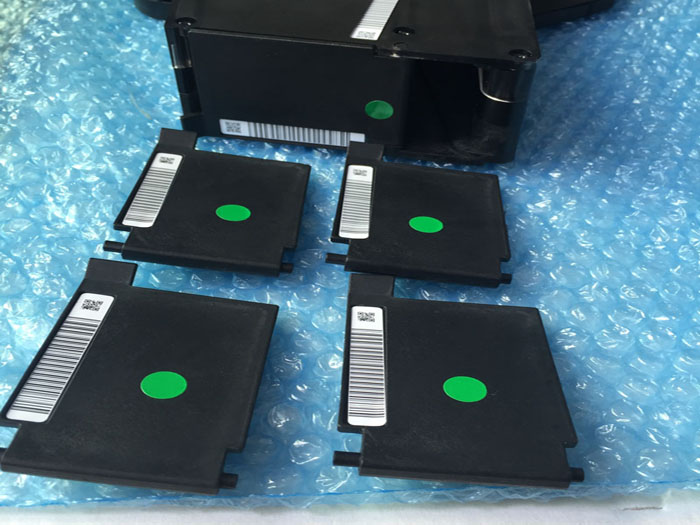

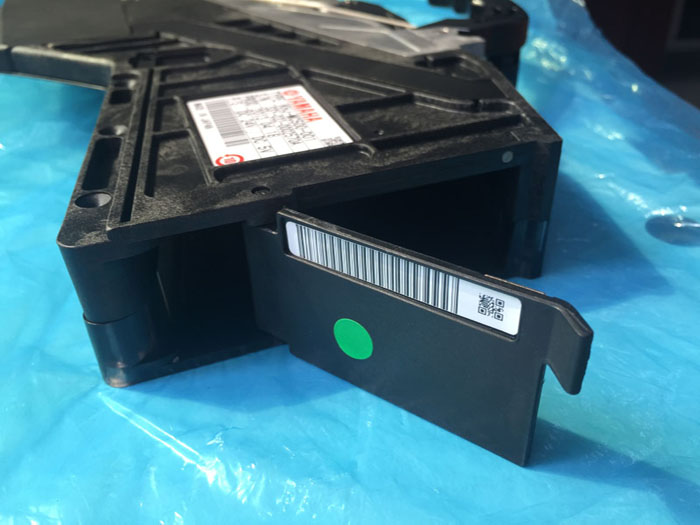

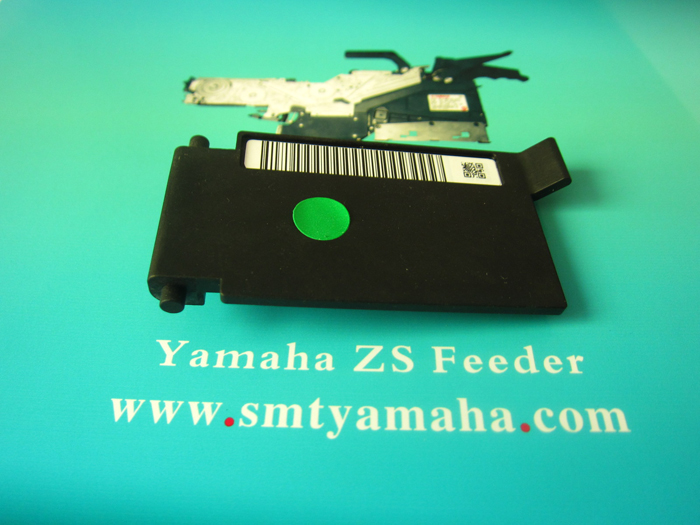

产品料号：KHJ-MC56U-00,32MM废料带尾巴盖

产品料号：KHJ-MC56U-S0,32MM废料带尾巴盖

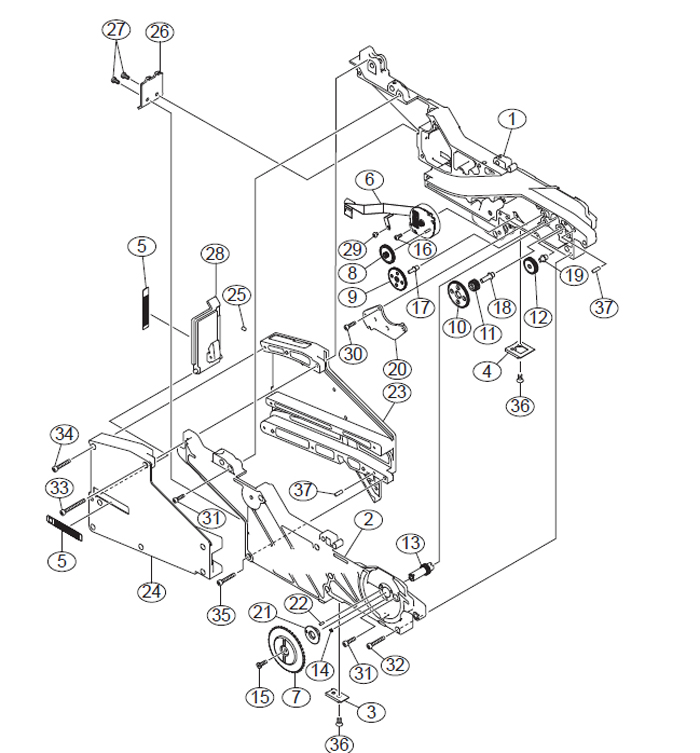

No. Part No. Part Name Q’ty Remarks Change Compati.
1
2 KHJ-MC502-00 COVER,FEEDER 1
3 KHJ-MC106-00 PLATE,UNDER 1
4 KHJ-MC206-00 PLATE,UNDER 1
5 KHJ-MC50C-00 SEAL,MAIN LABEL 1 *Attention
6 KHJ-MC510-00 MOTOR, FEED 1
6-1 KHJ-MC510-01 MOTOR, FEED 1 (2011/4/13) NG
7 KHJ-MC532-00 SPROCKET 1
8 KHJ-MC534-00 GEAR,IDLE F1 1
8-1 KHJ-MC534-01 GEAR,IDLE F1 1 (2010/3/5) OK
9 KHJ-MC535-00 GEAR,IDLE F2 1
10 KHJ-MC53R-00 GEAR,IDLE F3-1 1
10-1 KHJ-MC536-00 GEAR,IDLE F3 1 (2008/9/1)
11 KHJ-MC53S-00 GEAR,IDLE F3-2 1
11-1 Delete (2008/9/1)
12 KHJ-MC537-00 GEAR,IDLE F4 1
12-1 KHJ-MC53T-00 GEAR,IDLE F4 ASSY 1 (2010/3/5) OK
13 KHJ-MC538-00 GEAR,DRIVEN 1
14 KHJ-MC13D-00 SPRING,PUSHER PLATE 3
15 KHJ-MC53E-00 BOLT HEX.S/H LOW 1
16 90990-08J021 SCREW,STAD 2
20 KHJ-MC53L-00 COVER,FEED GEAR 1
21 KHJ-MC53M-00 SUB-BUSH,SPROCKET 1
22
23 KHJ-MC56Y-00 TOP TAPE BOX COMP. 1 With Magnet
24 KHJ-MC562-00 COVER,TOP TAPE BOX 1 Can not be sold
25 KHJ-MC165-00 MAGNET,TAIL 1
26 KHJ-MC566-00 BLOCK,P/O TOOTH 1 1
27 KHJ-MC46T-00 BOLT HEX.S/H LOW 2
28 KHJ-MC56U-00 TAIL COVER ASSY. 1 Can not be sold
29 90166-02JA03 SCREW,PAN HEAD 1
30 90115-2AJ008 BOLT HEX.SOCKET HEAD 3
31 91312-03012 BOLT,HEX.SOCKET HEAD 2
32 91312-03022 BOLT,HEX.SOCKET HEAD 5
33 91312-03030 BOLT,HEX.SOCKET HEAD 1
34 91317-03020 BOLT HEX.SOCKET HEAD 6
35 91317-03030 BOLT HEX.SOCKET HEAD 1
36 98707-03006 SCREW,FLAT HEAD 4
37
38 KHJ-MC56U-S0 PARTS, TAIL COVER 1 *Attention
39 KHJ-MC562-S0 PARTS, BOX COVER 1 *Attention
