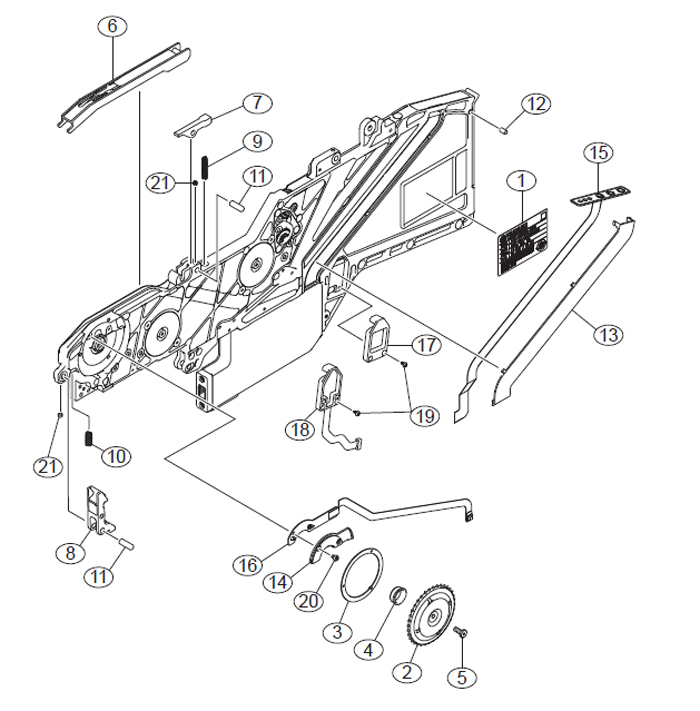

No. Part No. Part Name Q'ty Remarks
1 KHJ-MC10C-00 SEAL,MAIN LABEL 1
2 KHJ-MC131-00 SPROCKET ASSY. 1
3 KHJ-MC13A-00 SHIM,SPROCKET 1
4 KHJ-MC13B-00 BUSH,SPROCKET 1
5 KHJ-MC13E-00 BOLT,EXTRA LOW HEAD 1
6 KHJ-MC141-02 TAPE GUIDE ASSY. 1
7 KHJ-MC144-00 LEVER,TAPE GUIDE R 1
8 KHJ-MC145-00 LEVER,TAPE GUIDE F 1
9 KHJ-MC146-02 SPRING,TAPE GUIDE R 1
10 KHJ-MC147-02 SPRING,TAPE GUIDE F 1

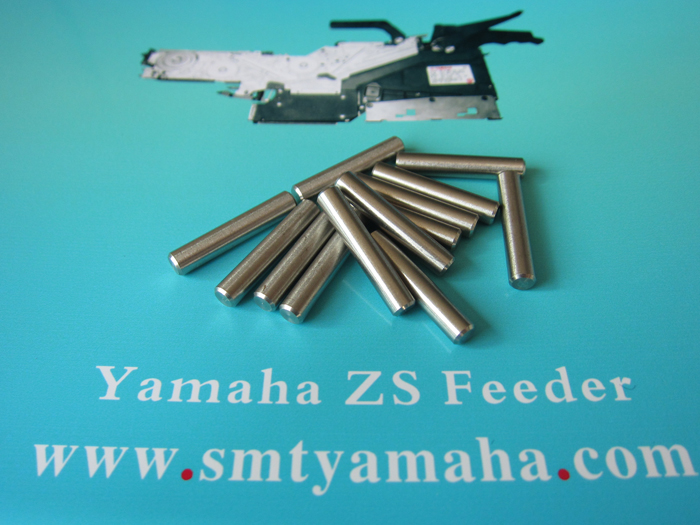

11 KHJ-MC15A-00 SHAFT 112 2
12 KHJ-MC165-00 MAGNET,TAIL 1
13 KHJ-MC167-00 COVER,MENBRANE 1
14 KHJ-MC1A4-00 COVER,ABS 1
15 KHJ-MC1AA-00 SWITCH,OPERATION 1
16 KHJ-M4664-00 ABS BOARD ASSY. 1
17 KHJ-MC1A5-00 DUMMY SPLICE SENS. 1
18 KHJ-MC1A5-10 SPLICE SENS.8MM 1 OPTION
19 KHJ-MC1AB-00 SCREW,PAN HEAD TAP. 2
20 90115-02J003 BOLT HEX.SOCKET HEAD 2
21 92A08-03303 SET SCREW M3X3 2
