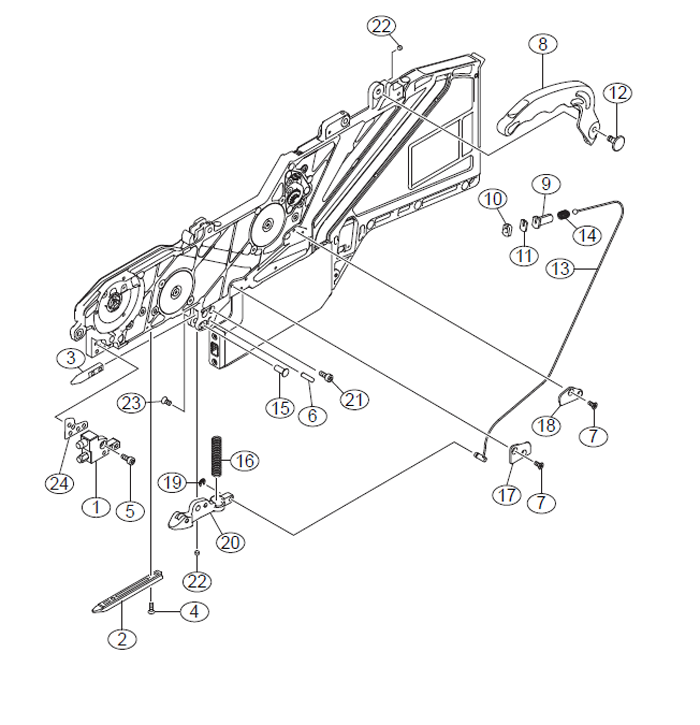

No. Part No. Part Name Q’ty Remarks Change Compati.
1 KHJ-MC10W-00 FRONT BLOCK ASSY 1
1-1 KLJ-MC10W-00 FRONT BLOCK ASSY 1 (2012/11/30) OK
2 KHJ-MC104-00 RAIL,UNDER 1
3 KHJ-MC105-00 PIN,TAIL 1
4 KHJ-MC10F-00 SCREW,FLAT HEAD 2
5 KHJ-MC10M-00 BOLT,HEX. S/H 2
6 KHJ-MC139-00 SHAFT,IDLE GEAR 1 1
7 KHJ-MC16J-00 SCREW,FLAT HEAD 4
8 KHJ-MC181-00 HANDLE 1
9 KHJ-MC182-00 TENSION,WIRE 1 1
10 KHJ-MC183-00 SPACER,TENSION 1 1
11 KHJ-MC184-00 SPACER,TENSION 2 3
12 KHJ-MC185-00 PIN,HANDLE 1
13 KHJ-MC186-00 WIRE,UNCLAMP 1
14 KHJ-MC187-00 SPRING,TENSION 1
15 KHJ-MC189-00 PIN,CLAMP 1
15-1 KHJ-MC189-01 PIN,CLAMP 1 (2008/6/25) NG
16 KHJ-MC18A-00 SPRING,CLAMP 1
17 KHJ-MC18B-00 COVER,WIRE 1 1
18 KHJ-MC18C-00 COVER,WIRE 2 1
19 KHJ-MC18F-00 CIRCLIP (E) 1
20 KHJ-MC18H-00 CLAMP LEVER ASSY. 1
20-1 KLJ-MC18H-00 CLAMP LEVER ASSY. 1 (2012/11/2) OK
21 91312-03008 BOLT HEX.SOCKET HEAD 2
22 92A08-03305 SCREW,SET 2
23 98702-03006 SCREW FLAT HEAD 1
24
KHJ-MC107-00 SHIM,FRONT BLOCK 1 1 0.01t
KHJ-MC108-00 SHIM,FRONT BLOCK 2 1 0.05t
KHJ-MC10G-00 SHIM,FRONT BLOCK 3 1 0.1t
KHJ-MC10U-00 SHIM,FRONT BLOCK 4 1 0.03t
KHJ-MC10V-00 SHIM,FRONT BLOCK 5 1 0.02t
