| KLJ-MC641-00,ZS44MM FEEDER壓料蓋,YSM10貼片機零部件,YMH飛達配件 |
| 發佈時間：2017-12-26 16:14:31 閱讀：3384次 |

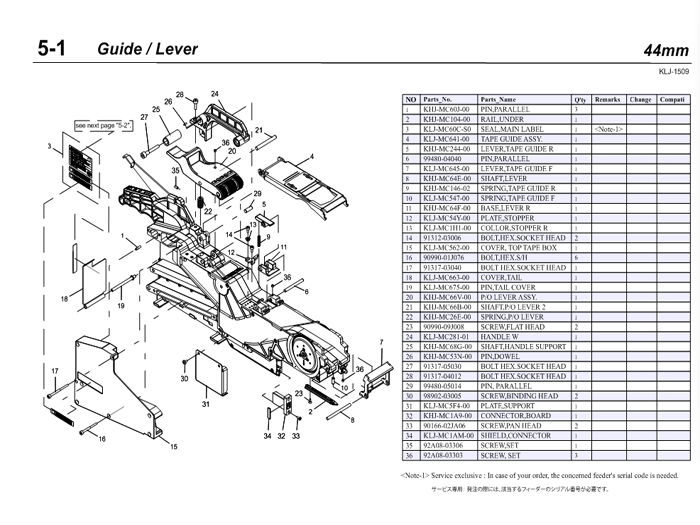

NO Parts_No. Parts_Name Q'ty Remarks Change Compati
1 KHJ-MC60J-00 PIN,PARALLEL 3
2 KHJ-MC104-00 RAIL,UNDER 1
3 KLJ-MC60C-S0 SEAL,MAIN LABEL 1 <Note-1>
4 KLJ-MC641-00 TAPE GUIDE ASSY. 1
5 KHJ-MC244-00 LEVER,TAPE GUIDE R 1
6 99480-04040 PIN,PARALLEL 1
7 KLJ-MC645-00 LEVER,TAPE GUIDE F 1
8 KHJ-MC64E-00 SHAFT,LEVER 1
9 KHJ-MC146-02 SPRING,TAPE GUIDE R 1
10 KLJ-MC547-00 SPRING,TAPE GUIDE F 1
11 KHJ-MC64F-00 BASE,LEVER R 1
12 KLJ-MC54Y-00 PLATE,STOPPER 1
13 KLJ-MC1H1-00 COLLOR,STOPPER R 1
14 91312-03006 BOLT,HEX.SOCKET HEAD 2
15 KLJ-MC562-00 COVER, TOP TAPE BOX 1
16 90990-01J076 BOLT,HEX.S/H 6
17 91317-03040 BOLT HEX.SOCKET HEAD 1
18 KLJ-MC663-00 COVER,TAIL 1
19 KLJ-MC675-00 PIN,TAIL COVER 1
20 KHJ-MC66V-00 P/O LEVER ASSY. 1
21 KHJ-MC66B-00 SHAFT,P/O LEVER 2 1
22 KHJ-MC26E-00 SPRING,P/O LEVER 1
23 90990-09J008 SCREW,FLAT HEAD 2
24 KLJ-MC281-01 HANDLE W 1
25 KHJ-MC68G-00 SHAFT,HANDLE SUPPORT 1
26 KHJ-MC53N-00 PIN,DOWEL 1
27 91317-05030 BOLT HEX.SOCKET HEAD 1
28 91317-04012 BOLT HEX.SOCKET HEAD 1
29 99480-05014 PIN, PARALLEL 1
30 98902-03005 SCREW,BINDING HEAD 2
31 KLJ-MC5F4-00 PLATE,SUPPORT 1
32 KHJ-MC1A9-00 CONNECTOR,BOARD 1
33 90166-02JA06 SCREW,PAN HEAD 2
34 KLJ-MC1AM-00 SHIELD,CONNECTOR 1
35 92A08-03306 SCREW,SET 1
36 92A08-03303 SCREW, SET 3
|
| |
| |
|
|
