KHJ-MC441-05,雅馬哈ZS款電子料架導軌,YMH電動送料器零部件,ZS型電動料槍配件
發佈時間:2017-12-25 10:46:56 閱讀:2911

KHJ-MC441-05 TAPE GUIDE ASSY.

歡迎SMT大佬們前來批發
SMT同行大量批發中
廠家直銷批發零售中
佳萬興公司已開發雅馬哈YS款/ZS款電子送料器配件
佳萬興公司大量批發YAMAHA SS/ZS款電動飛達配件
適用於YAMAHA YS12/YS12F/YS12P/YS24/YS24X/YS88/YS100/YSM10/YSM20/YSM20W/YSM40/YSM40R高速模組貼片機送料器
德國品質,全球共用

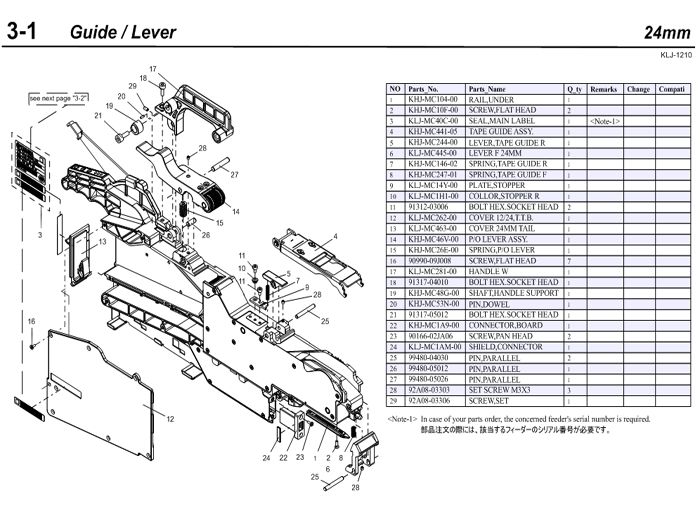

NO Parts_No. Parts_Name Q_ty Remarks Change Compati
1 KHJ-MC104-00 RAIL,UNDER 1
2 KHJ-MC10F-00 SCREW,FLAT HEAD 2
3 KLJ-MC40C-00 SEAL,MAIN LABEL 1 <Note-1>
4 KHJ-MC441-05 TAPE GUIDE ASSY. 1
5 KHJ-MC244-00 LEVER,TAPE GUIDE R 1
6 KLJ-MC445-00 LEVER F 24MM 1
7 KHJ-MC146-02 SPRING,TAPE GUIDE R 1
8 KHJ-MC247-01 SPRING,TAPE GUIDE F 1
9 KLJ-MC14Y-00 PLATE,STOPPER 1
10 KLJ-MC1H1-00 COLLOR,STOPPER R 1
11 91312-03006 BOLT HEX.SOCKET HEAD 2
12 KLJ-MC262-00 COVER 12/24,T.T.B. 1
13 KLJ-MC463-00 COVER 24MM TAIL 1
14 KHJ-MC46V-00 P/O LEVER ASSY. 1
15 KHJ-MC26E-00 SPRING,P/O LEVER 1
16 90990-09J008 SCREW,FLAT HEAD 7
17 KLJ-MC281-00 HANDLE W 1
18 91317-04010 BOLT HEX.SOCKET HEAD 1
19 KHJ-MC48G-00 SHAFT,HANDLE SUPPORT 1
20 KHJ-MC53N-00 PIN,DOWEL 1
21 91317-05012 BOLT HEX.SOCKET HEAD 1
22 KHJ-MC1A9-00 CONNECTOR,BOARD 1
23 90166-02JA06 SCREW,PAN HEAD 2
24 KLJ-MC1AM-00 SHIELD,CONNECTOR 1
25 99480-04030 PIN,PARALLEL 2
26 99480-05012 PIN,PARALLEL 1
27 99480-05026 PIN,PARALLEL 1
28 92A08-03303 SET SCREW M3X3 3
29 92A08-03306 SCREW,SET 1
