KHJ-MC238-00,雅馬哈電動SS型飛達配件,SS FEEDER齒輪,SS料架配件,YMH電動料架配件
發佈時間:2017-11-22 21:16:18 閱讀:2675

SMT大佬們
佳萬興公司新產品出爐了
德國品質,全球共用,大量熱銷
KHJ-MC238-00,12/16MM-24MM金屬進料齒輪
適用於YAMAHA YS系列貼片機SS款電動Feeder 12/16MM-24MM金屬進料齒輪
更多資訊請手機/微信:

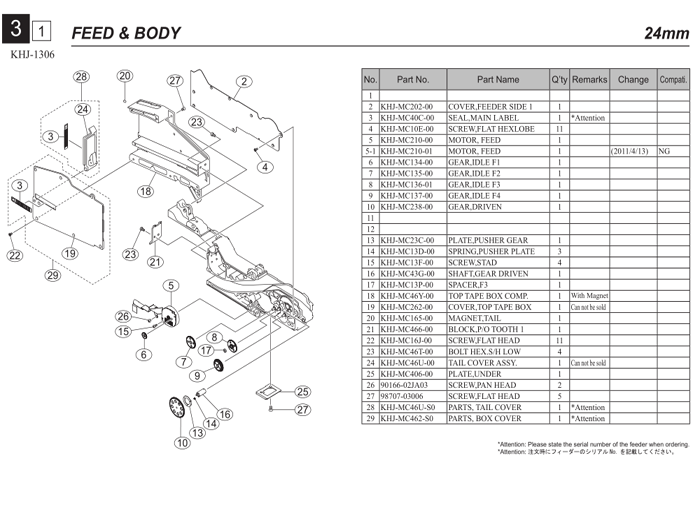

No. Part No. Part Name Q’ty Remarks Change Compati.
1
2 KHJ-MC202-00 COVER,FEEDER SIDE 1 1
3 KHJ-MC40C-00 SEAL,MAIN LABEL 1 *Attention
4 KHJ-MC10E-00 SCREW,FLAT HEXLOBE 11
5 KHJ-MC210-00 MOTOR, FEED 1
5-1 KHJ-MC210-01 MOTOR, FEED 1 (2011/4/13) NG
6 KHJ-MC134-00 GEAR,IDLE F1 1
7 KHJ-MC135-00 GEAR,IDLE F2 1
8 KHJ-MC136-01 GEAR,IDLE F3 1
9 KHJ-MC137-00 GEAR,IDLE F4 1
10 KHJ-MC238-00 GEAR,DRIVEN 1
11
12
13 KHJ-MC23C-00 PLATE,PUSHER GEAR 1
14 KHJ-MC13D-00 SPRING,PUSHER PLATE 3
15 KHJ-MC13F-00 SCREW,STAD 4
16 KHJ-MC43G-00 SHAFT,GEAR DRIVEN 1
17 KHJ-MC13P-00 SPACER,F3 1
18 KHJ-MC46Y-00 TOP TAPE BOX COMP. 1 With Magnet
19 KHJ-MC262-00 COVER,TOP TAPE BOX 1 Can not be sold
20 KHJ-MC165-00 MAGNET,TAIL 1
21 KHJ-MC466-00 BLOCK,P/O TOOTH 1 1
22 KHJ-MC16J-00 SCREW,FLAT HEAD 11
23 KHJ-MC46T-00 BOLT HEX.S/H LOW 4
24 KHJ-MC46U-00 TAIL COVER ASSY. 1 Can not be sold
25 KHJ-MC406-00 PLATE,UNDER 1
26 90166-02JA03 SCREW,PAN HEAD 2
27 98707-03006 SCREW,FLAT HEAD 5
28 KHJ-MC46U-S0 PARTS, TAIL COVER 1 *Attention
29 KHJ-MC462-S0 PARTS, BOX COVER 1 *Attention
