| KHJ-MC534-00,雅馬哈SS電動供料器配件,SS款電動32MM飛達齒輪,YMH電動FEEDER配件 |
| 發佈時間：2017-11-20 19:21:01 閱讀：3020次 |
專業生產,銷售雅馬哈貼片機配件
YAMAHA電子送生產/銷售
YS12/YS24/YSM10/YSM20/YSM40R SS/ZS款電動Feeder配件
YS/SS款8MM-56MM板卡/馬達/保險扣/壓料蓋/定位柱/彈簧/尾巴蓋子/手柄/齒輪/外蓋/螺絲/彈片.......
歡迎來電諮詢
手機/微信：13923705220

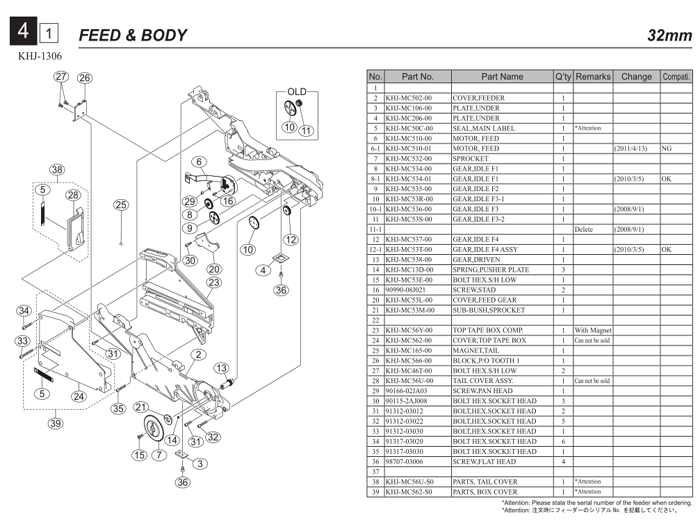

No. Part No. Part Name Q’ty Remarks Change Compati.
1
2 KHJ-MC502-00 COVER,FEEDER 1
3 KHJ-MC106-00 PLATE,UNDER 1
4 KHJ-MC206-00 PLATE,UNDER 1
5 KHJ-MC50C-00 SEAL,MAIN LABEL 1
*Attention
6 KHJ-MC510-00 MOTOR, FEED 1
6-1 KHJ-MC510-01 MOTOR, FEED 1 (2011/4/13) NG
7 KHJ-MC532-00 SPROCKET 1
8 KHJ-MC534-00 GEAR,IDLE F1 1
8-1 KHJ-MC534-01 GEAR,IDLE F1 1 (2010/3/5) OK
9 KHJ-MC535-00 GEAR,IDLE F2 1
10 KHJ-MC53R-00 GEAR,IDLE F3-1 1
10-1 KHJ-MC536-00 GEAR,IDLE F3 1 (2008/9/1)
11 KHJ-MC53S-00 GEAR,IDLE F3-2 1
11-1 Delete (2008/9/1)
12 KHJ-MC537-00 GEAR,IDLE F4 1
12-1 KHJ-MC53T-00 GEAR,IDLE F4 ASSY 1 (2010/3/5) OK
13 KHJ-MC538-00 GEAR,DRIVEN 1
14 KHJ-MC13D-00 SPRING,PUSHER PLATE 3
15 KHJ-MC53E-00 BOLT HEX.S/H LOW 1
16 90990-08J021 SCREW,STAD 2
20 KHJ-MC53L-00 COVER,FEED GEAR 1
21 KHJ-MC53M-00 SUB-BUSH,SPROCKET 1
22
23 KHJ-MC56Y-00 TOP TAPE BOX COMP. 1 With Magnet
24 KHJ-MC562-00 COVER,TOP TAPE BOX 1 Can not be sold
25 KHJ-MC165-00 MAGNET,TAIL 1
26 KHJ-MC566-00 BLOCK,P/O TOOTH 1 1
27 KHJ-MC46T-00 BOLT HEX.S/H LOW 2
28 KHJ-MC56U-00 TAIL COVER ASSY. 1 Can not be sold
29 90166-02JA03 SCREW,PAN HEAD 1
30 90115-2AJ008 BOLT HEX.SOCKET HEAD 3
31 91312-03012 BOLT,HEX.SOCKET HEAD 2
32 91312-03022 BOLT,HEX.SOCKET HEAD 5
33 91312-03030 BOLT,HEX.SOCKET HEAD 1
34 91317-03020 BOLT HEX.SOCKET HEAD 6
35 91317-03030 BOLT HEX.SOCKET HEAD 1
36 98707-03006 SCREW,FLAT HEAD 4
37
38 KHJ-MC56U-S0 PARTS, TAIL COVER 1
*Attention
39 KHJ-MC562-S0 PARTS, BOX COVER 1
*Attention
*Attention: Please state the serial number of the feeder when ordering.
*Attention: 注文時にフィーダーのシリアル No. を記載してください。
|
| |
| |
|
|
