| KLJ-MC281-00,ZS型電子送料器手把,ZS12MM電動餵料器手柄,ZS16MM飛達手把 |
| 發佈時間：2017-11-14 11:06:24 閱讀：3318次 |
KHJ-MC181-00，SS 8MM
KHJ-MC281-00，SS 12/16MM-72MM
KLJ-MC181-00，ZS 8MM
KLJ-MC281-00，ZS 12/16MM-72MM

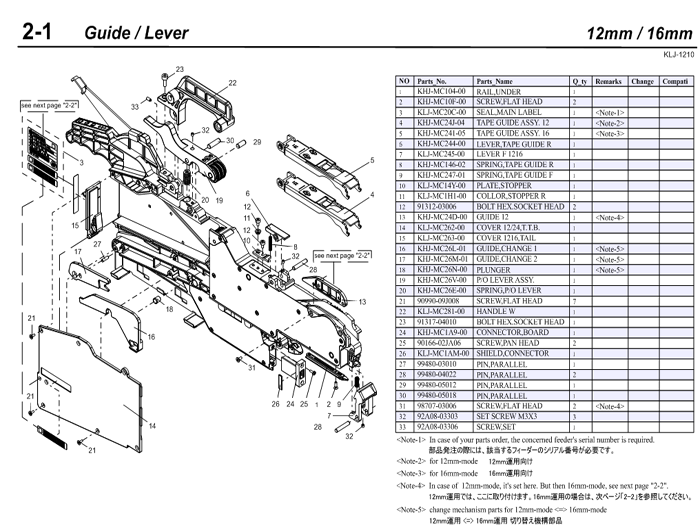

NO Parts_No. Parts_Name Q_ty Remarks Change Compati
1 KHJ-MC104-00 RAIL,UNDER 1
2 KHJ-MC10F-00 SCREW,FLAT HEAD 2
3 KLJ-MC20C-00 SEAL,MAIN LABEL 1 <Note-1>
4 KHJ-MC24J-04 TAPE GUIDE ASSY. 12 1 <Note-2>
5 KHJ-MC241-05 TAPE GUIDE ASSY. 16 1 <Note-3>
6 KHJ-MC244-00 LEVER,TAPE GUIDE R 1
7 KLJ-MC245-00 LEVER F 1216 1
8 KHJ-MC146-02 SPRING,TAPE GUIDE R 1
9 KHJ-MC247-01 SPRING,TAPE GUIDE F 1
10 KLJ-MC14Y-00 PLATE,STOPPER 1
11 KLJ-MC1H1-00 COLLOR,STOPPER R 1
12 91312-03006 BOLT HEX.SOCKET HEAD 2
13 KHJ-MC24D-00 GUIDE 12 1 <Note-4>
14 KLJ-MC262-00 COVER 12/24,T.T.B. 1
15 KLJ-MC263-00 COVER 1216,TAIL 1
16 KHJ-MC26L-01 GUIDE,CHANGE 1 1 <Note-5>
17 KHJ-MC26M-01 GUIDE,CHANGE 2 1 <Note-5>
18 KHJ-MC26N-00 PLUNGER 1 <Note-5>
19 KHJ-MC26V-00 P/O LEVER ASSY. 1
20 KHJ-MC26E-00 SPRING,P/O LEVER 1
21 90990-09J008 SCREW,FLAT HEAD 7
22 KLJ-MC281-00 HANDLE W 1
23 91317-04010 BOLT HEX.SOCKET HEAD 1
24 KHJ-MC1A9-00 CONNECTOR,BOARD 1
25 90166-02JA06 SCREW,PAN HEAD 2
26 KLJ-MC1AM-00 SHIELD,CONNECTOR 1
27 99480-03010 PIN,PARALLEL 1
28 99480-04022 PIN,PARALLEL 2
29 99480-05012 PIN,PARALLEL 1
30 99480-05018 PIN,PARALLEL 1
31 98707-03006 SCREW,FLAT HEAD 2 <Note-4>
32 92A08-03303 SET SCREW M3X3 3
33 92A08-03306 SCREW,SET 1
|
| |
| |
|
|
