KLJ-MC181-00,雅馬哈最新款電動飛達手把,ZS型號送料槍手柄,ZS FEEDER手把,YMS10飛達配件
發佈時間:2017-10-28 16:29:15 閱讀:3260

佳萬興公司自主開發,自設工廠生產,自產自銷模式
找佳萬興公司購買,省去中間環節,為顧客節省成本
YAMAHA YSM10,YSM20,YSM20W,YSM40,YSM40R貼片機電動飛達配件
YAMAHA ZS款電動送料器零部件

KLJ-MC181-00,YAMAHA ZS 8MM手把
KLJ-MC281-00,YAMAHA ZS 12/16MM-104MM手把

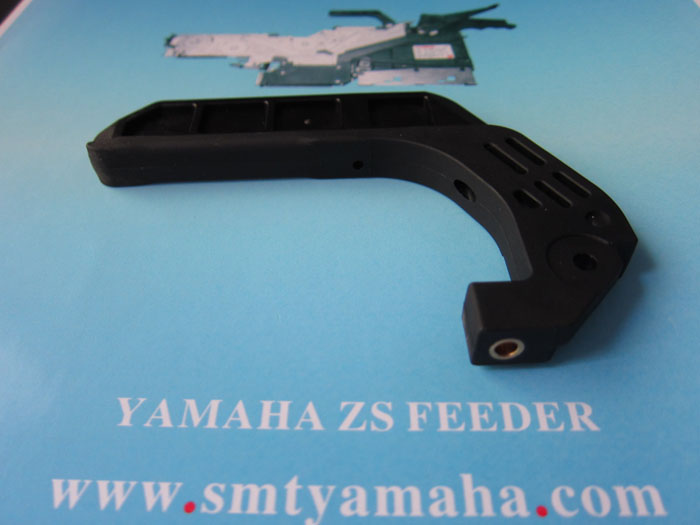

產品料號:KLJ-MC181-00
產品名稱:YAMAHA ZS 8MM HANDLE (雅馬哈電動ZS8MM款料架手把)

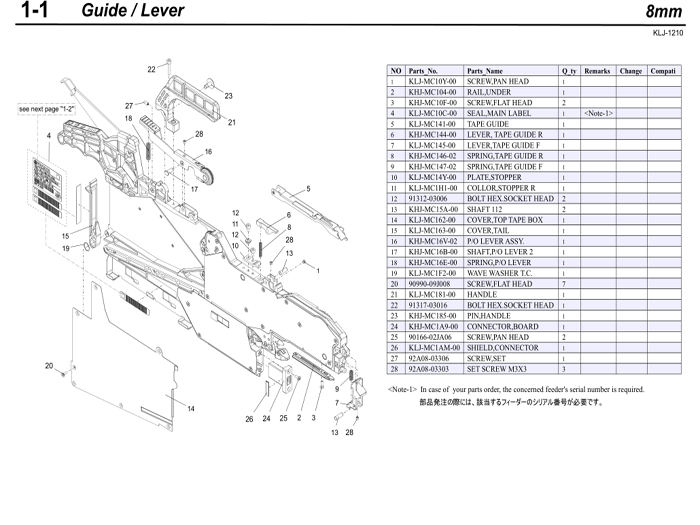

以下爆炸圖片中的序號21#




NO Parts_No. Parts_Name Q_ty Remarks Change Compati
1 KLJ-MC10Y-00 SCREW,PAN HEAD 1
2 KHJ-MC104-00 RAIL,UNDER 1
3 KHJ-MC10F-00 SCREW,FLAT HEAD 2
4 KLJ-MC10C-00 SEAL,MAIN LABEL 1 <Note-1>
5 KLJ-MC141-00 TAPE GUIDE 1
6 KHJ-MC144-00 LEVER, TAPE GUIDE R 1
7 KLJ-MC145-00 LEVER,TAPE GUIDE F 1
8 KHJ-MC146-02 SPRING,TAPE GUIDE R 1
9 KHJ-MC147-02 SPRING,TAPE GUIDE F 1
10 KLJ-MC14Y-00 PLATE,STOPPER 1
11 KLJ-MC1H1-00 COLLOR,STOPPER R 1
12 91312-03006 BOLT HEX.SOCKET HEAD 2
13 KHJ-MC15A-00 SHAFT 112 2
14 KLJ-MC162-00 COVER,TOP TAPE BOX 1
15 KLJ-MC163-00 COVER,TAIL 1
16 KHJ-MC16V-02 P/O LEVER ASSY. 1
17 KHJ-MC16B-00 SHAFT,P/O LEVER 2 1
18 KHJ-MC16E-00 SPRING,P/O LEVER 1
19 KLJ-MC1F2-00 WAVE WASHER T.C. 1
20 90990-09J008 SCREW,FLAT HEAD 7
21 KLJ-MC181-00 HANDLE 1
22 91317-03016 BOLT HEX.SOCKET HEAD 1
23 KHJ-MC185-00 PIN,HANDLE 1
24 KHJ-MC1A9-00 CONNECTOR,BOARD 1
25 90166-02JA06 SCREW,PAN HEAD 2
26 KLJ-MC1AM-00 SHIELD,CONNECTOR 1
27 92A08-03306 SCREW,SET 1
28 92A08-03303 SET SCREW M3X3 3
