KLJ-MC1AA-00,ZS 8MM按鍵,YSM20電動餵料器按鍵,YSM10 FEEDER按鍵,ZS 24MM飛達按鍵
發佈時間:2017-9-5 11:21:31 閱讀:2149

Parts_No.KLJ-MC1AA-00

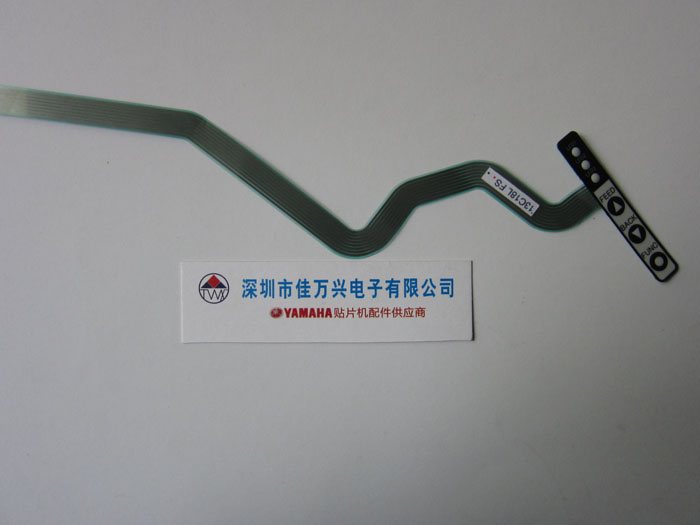

Parts_Name:YAMAHA ZS 8MM-104MM COVER,MENBRANESWITCH,OPERATION(ZS款電動飛達8MM-104MM按鍵)

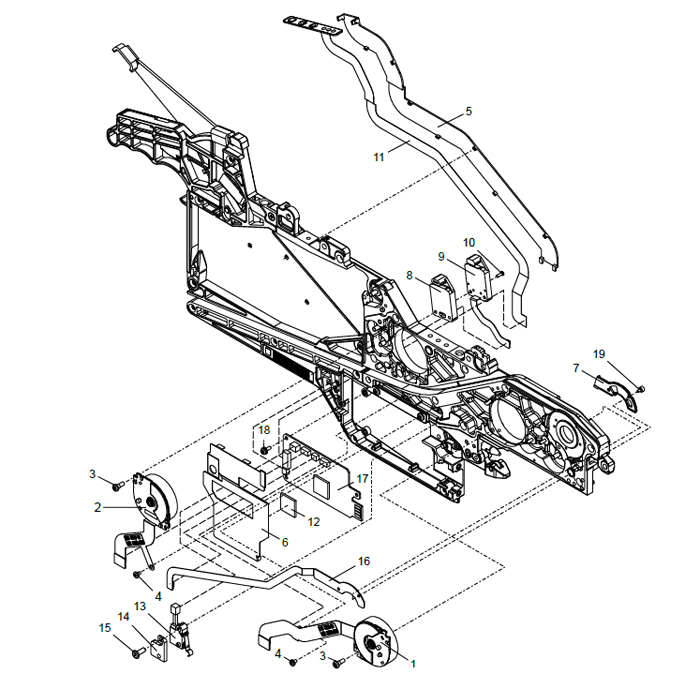

以下爆炸圖片中的序號11#

自主開發,自主生產
SMT同行大量批發中
佳萬興廠家直銷批發零售中
佳萬興公司已開發雅馬哈YS款/ZS款電子送料器配件
佳萬興公司大量批發YAMAHA SS/ZS款電動飛達配件
適用於YAMAHA YS12/YS12F/YS12P/YS24/YS24X/YS88/YS100/YSM20/YSM40高速模組貼片機送料器上




NO Parts_No. Parts_Name Q_ty Remarks Change Compati
1 KLJ-MC110-00 MOTOR,FEED 1
2 KLJ-MC120-00 MOTOR,PEEL 1
3 90990-08J021 SCREW,STAD 4
4 90166-02JA03 SCREW,PAN HEAD 2
5 KLJ-MC167-00 COVER,MENBRANE 1
6 KLJ-MC1A3-00 COVER,CABLE 1
7 KLJ-MC1A4-00 COVER,ABS 1
8 KLJ-MC1A5-00 DUMMY SPLICE SENS. 1 <Note-1>
9 KHJ-MC1A5-10 SPLICE SENS. 8MM 1 <Note-2>
10 90990-08J020 SCREW,M2X5 2
11 KLJ-MC1AA-00 SWITCH,OPERATION 1
12 KHJ-MC1AC-00 INSULATION SHEET 1
13 KLJ-MC1AL-00 SW,LIMIT 1
14 KLJ-MC1AJ-00 NUT,PLATE 1
15 KLJ-MC1AK-00 EXTRA,LOW HEAD CAP 1
16 KHJ-M4664-01 ABS BOARD ASSY. 1
17 KLJ-M4488-00 FEEDER BOARD ASSY. 1
18 90166-12JA06 SCREW,PAN HEAD W/W 3
19 90115-02J003 BOLT HEX.SOCKET HEAD 2
