| KHJ-MC15A-00,SS 8MM固定銷,ZS 8MM定位柱,YS12電動料架部件,YS24電子料槍零部件 |
| 發佈時間：2017-7-24 18:15:47 閱讀：3230次 |
SS/ZS
8MM-56MM固定銷/定位柱全部齊全
小到螺絲，大到馬達板卡都要現貨
佳萬興公司努力做到最好最完美
YAMAHA貼片機配件，找我們購買，沒有中間商賺差價
深圳市佳萬興電子有限公司
手機/微信：13923705220
99480-03010,PIN,PARALLEL,8MM-72MM
KHJ-MC15A-00,SHAFT 112,8MM
KHJ-MC16B-00,SHAFT,P/O LEVER 2，8MM
KHJ-MC185-00,PIN,HANDLE,8MM
99480-04022,PIN,PARALLEL，12/16MM
99480-05018,PIN,PARALLEL,12/16MM
99480-05012,PIN,PARALLEL,12/16MM
99480-04030,PIN,PARALLEL,24MM
KHJ-MC54E-00,SHAFT,LEVER,32MM
99480-04028,PIN,PARALLEL,32MM
KHJ-MC64E-00,SHAFT,LEVER,44MM,56MM
99480-04040,PIN,PARALLEL,44MM
KHJ-MC74E-00,SHAFT,LEVER,56MM

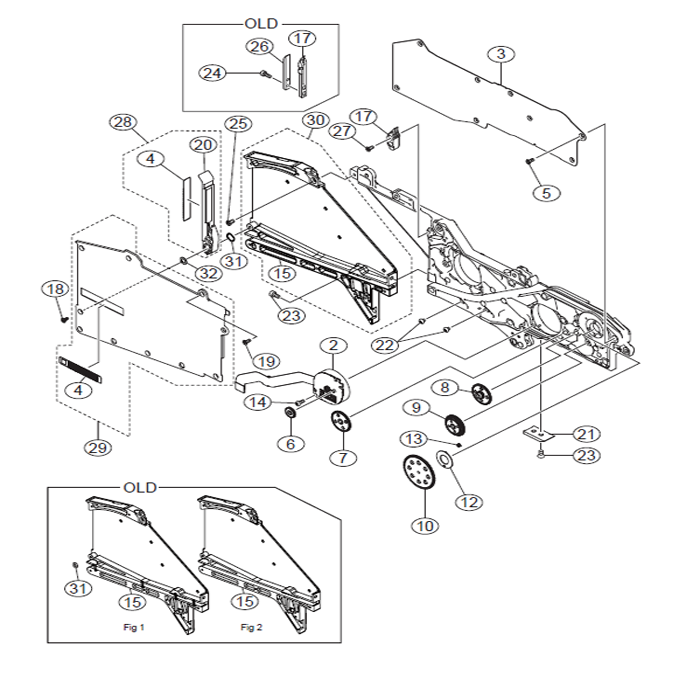

No. Part No. Part Name Q'ty Remarks Change Compati.
2 KHJ-MC110-00 MOTOR,FEED 1
2-1 KHJ-MC110-01 MOTOR,FEED 1 Different connector (2011/4/13) NG
3 KHJ-MC102-00 COVER,FEEDER SIDE 1 1
4 KHJ-MC10C-00 SEAL,MAIN LABEL 1 *Attention
5 KHJ-MC10E-00 SCREW,FLAT HEXLOBE 8
6 KHJ-MC134-00 GEAR,IDLE F1 1
7 KHJ-MC135-00 GEAR,IDLE F2 1
8 KHJ-MC136-01 GEAR,IDLE F3 1
9 KHJ-MC137-00 GEAR,IDLE F4 1
10 KHJ-MC138-00 GEAR,DRIVEN 1
12 KHJ-MC13C-00 PLATE,PUSHER GEAR 1
13 KHJ-MC13D-00 SPRING,PUSHER PLATE 3
14 KHJ-MC13F-00 SCREW,STAD 2
15 KHJ-MC161-01 BOX,TOP TAPE 1 Fig 1
15-1 KHJ-MC161-02 BOX,TOP TAPE 1 Fig 2 (2008/5/14) NG
15-2 KHJ-MC161-03 BOX,TOP TAPE 1 (2013/10/11) NG
17 KHJ-MC166-00 BLOCK,P/O TOOTH 1 1
17-1 KHJ-MC166-01 BLOCK,P/O TOOTH 1 1 (2008/4/25) NG
17-2 KHJ-MC166-02 BLOCK,P/O TOOTH 1 1 (2008/11/14) NG
18 KHJ-MC16F-00 SCREW,FLAT HEAD TAP. 6
19 KHJ-MC16J-00 SCREW,FLAT HEAD 2
20 KHJ-MC16U-00 TAIL COVER ASSY. 1 Can not be sold
21 KHJ-MC106-00 PLATE,UNDER 1
22 90166-02JA03 SCREW,PAN HEAD 2
23 91317-03006 BOLT HEX.SOCKET HEAD 3
23-1 KHJ-MC11T-00 BOLT,LOCK S/H 3 (2011/4/22) OK
24 91317-03008 BOLT HEX.SOCKET HEAD 2
24-1 91312-03010 BOLT HEX.SOCKET HEAD 2 (2008/4/11) OK
25 98707-03006 SCREW,FLAT HEAD 3
26 KHJ-MC16W-00 PLATE,P/O TOOTH 1 1 (2008/4/11)
27 90112-2AJ006 BOLT HEX.SOCKET HEAD 2 (2008/4/25)
28 KHJ-MC16U-S0 PARTS, TAIL COVER 1 *Attention
29 KHJ-MC162-S0 PARTS, BOX COVER 1 *Attention (2008/7/18) NG
30 KHJ-MC16Y-00 TOP TAPE BOX COMP. 1 With Magnet
31 KHJ-MC16K-00 POLY WASHER 0.13 1 (2011/6/13)
31-1 KLJ-MC1F2-00 WAVE WASHER T.C. 1 (2013/10/11) NG
32 KHJ-MC1FB-00 SHIM,0.3 1 (2013/10/11)

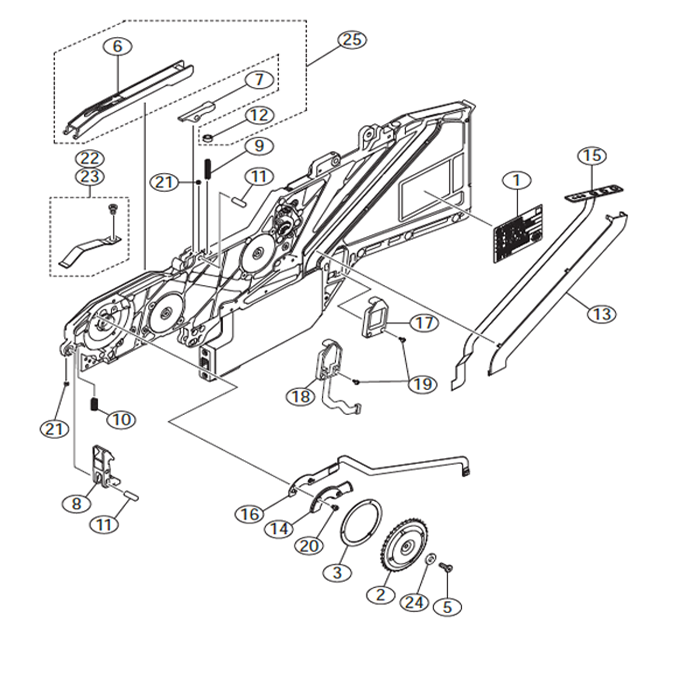

No. Part No. Part Name Q'ty Remarks Change Compati.
1 KHJ-MC10C-00 SEAL,MAIN LABEL 1
2 KHJ-MC131-00 SPROCKET ASSY. 1
2-1 KHJ-MC131-01 SPROCKET ASSY. 1 Resin (2008/10/14) OK
2-2 KHJ-MC131-02 SPROCKET ASSY. 1 Metal (2011/4/27) OK
3 KHJ-MC13A-00 SHIM,SPROCKET 1
4
5 90990-01J043 BOLT,EXTRA LOW HEAD 1
5-1 KHJ-MC13E-01 SCREW,SLIM HRAD 1 (2008/10/14) OK
6 KHJ-MC141-02 TAPE GUIDE 1
6-1 KHJ-MC141-03 TAPE GUIDE 1 Resin (2010/2/3) OK
6-2 KHJ-MC141-04 TAPE GUIDE. 1 Metal (2011/4/27) OK
6-3
KLJ-MC141-00 TAPE GUIDE 1 STD (2013/5/27) OK
KLJ-MC14A-00 TAPE GUIDE,W8P1 1 1mm Pitch (2012/5/10)
KLJ-MC14B-00 TAPE GUIDE,W8P4 1 4mm Pitch (2012/5/10)
7 KHJ-MC144-00 LEVER,TAPE GUIDE R 1
8 KHJ-MC145-00 LEVER,TAPE GUIDE F 1
8-1 KHJ-MC145-01 LEVER,TAPE GUIDE F 1 (2008/5/17) OK
9 KHJ-MC146-02 SPRING,TAPE GUIDE R 1
10 KHJ-MC147-02 SPRING,TAPE GUIDE F 1
11 KHJ-MC15A-00 SHAFT 112 2
12 KHJ-MC149-00 STOPPER,LEVER R 1 (2012/2/9)
13 KHJ-MC167-00 COVER,MENBRANE 1
14 KHJ-MC1A4-00 COVER,ABS 1
15 KHJ-MC1AA-00 SWITCH,OPERATION 1
16 KHJ-M4664-00 ABS BOARD ASSY. 1
17 KHJ-MC1A5-00 DUMMY SPLICE SENS. 1
18 KHJ-MC1A5-10 SPLICE SENS.8MM 1 OPTION
19 KHJ-MC1AB-00 SCREW,PAN HEAD TAP. 2
20 90115-02J003 BOLT HEX.SOCKET HEAD 2
21 92A08-03303 SET SCREW M3X3 2
22 KHJ-MC1C1-00 PLATE, SPRING ASSY. 1 OPTION (2010/8/3)
23 KHJ-MC1C1-10 PLATE, SPRING ASSY. 10 OPTION (2010/8/3)
24 92902-03200 WASHER PLAIN 1 (2008/10/14)
25
KHJ-MC141-S0 PARTS,TAPE GUIDE 1 STD (2012/3/16)
KHJ-MC14A-S0 PARTS,TAPE GUIDE P1 1 1mm Pitch (2012/5/10)
KHJ-MC14B-S0 PARTS,TAPE GUIDE P4 1 4mm Pitch (2012/5/10)

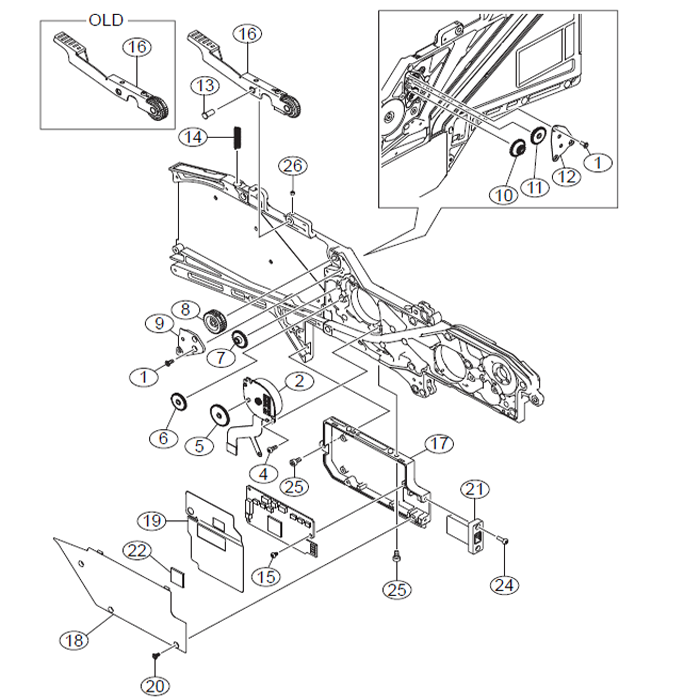

No. Part No. Part Name Q’ty Remarks Change Compati.
1 KHJ-MC10E-00 SCREW,FLAT HEXLOBE 5
2 KHJ-MC110-10 MOTOR,PEEL 1
2-1 KHJ-MC110-11 MOTOR,PEEL 1
Different connector (2011/4/13)
NG
3
4 KHJ-MC13F-00 SCREW,STAD 2
5 KHJ-MC151-00 GEAR,IDLE P1 1
6 KHJ-MC152-00 GEAR,IDLE P2 1
7 KHJ-MC153-00 GEAR,IDLE P3 1
8 KHJ-MC156-00 ROLLER,P/O 1 1
8-1 KHJ-MC156-01 ROLLER,P/O 1 1 (2008/4/25) NG
8-2 KHJ-MC156-02 ROLLER,P/O 1 1 (2008/11/14) NG
9 KHJ-MC159-00 COVER,IDLE GEAR 2 1
10 KHJ-MC154-00 GEAR,IDLE P4 1
11 KHJ-MC155-00 GEAR,IDLE P5 1
12 KHJ-MC158-00 COVER,IDLE GEAR 1 1
13 KHJ-MC16B-00 SHAFT,P/O LEVER 2 1
14 KHJ-MC16E-00 SPRING,P/O LEVER 1
15 KHJ-MC16H-00 SCREW,PAN HEAD TAP. 3
16 KHJ-MC16V-00 P/O LEVER ASSY. 1
16-1 KHJ-MC16V-01 P/O LEVER ASSY. 1 (2008/6/24) OK
16-2 KHJ-MC16V-02 P/O LEVER ASSY. 1 (2008/11/14) NG
17 KHJ-MC1A1-00 BOX,EL 1
18 KHJ-MC1A2-00 COVER,BOX EL 1
19 KHJ-MC1A3-00 COVER,CABLE 1
19-1 KHJ-MC1A3-01 COVER,CABLE 1 (2008/4/25) NG
20 KHJ-MC1A6-00 SCREW,FLAT HEXLOBE T 3
21 KHJ-MC1A9-00 CONNECTOR,BOARD 1
22 KHJ-MC1AC-00 INSULATION SHEET 1
23
24 90166-02JA08 SCREW PAN H.:M2.5X8 2
25 91317-03006 BOLT HEX.SOCKET HEAD 3
25-1 KHJ-MC11T-00 BOLT,LOCK S/H 3 (2011/4/22) OK
26 92A08-03303 SET SCREW M3X3 1

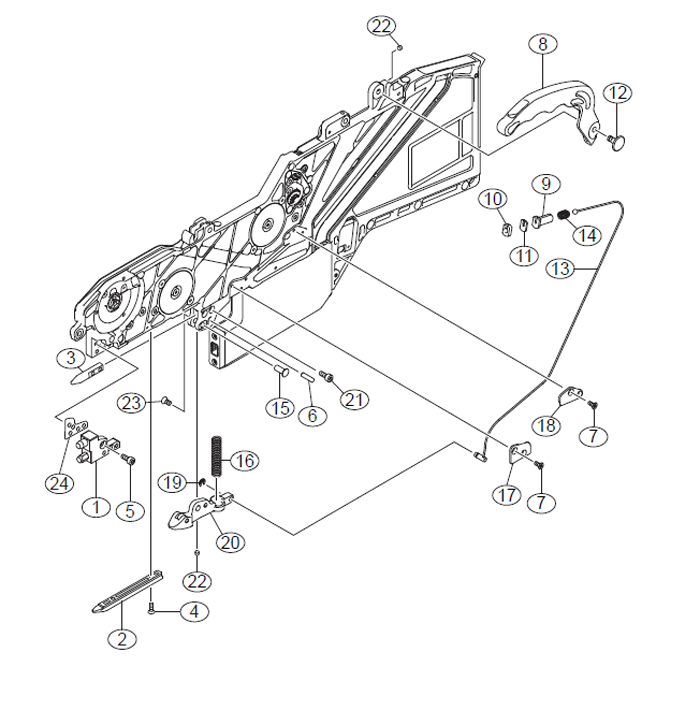

No. Part No. Part Name Q’ty Remarks Change Compati.
1 KHJ-MC10W-00 FRONT BLOCK ASSY 1
1-1 KLJ-MC10W-00 FRONT BLOCK ASSY 1 (2012/11/30) OK
2 KHJ-MC104-00 RAIL,UNDER 1
3 KHJ-MC105-00 PIN,TAIL 1
4 KHJ-MC10F-00 SCREW,FLAT HEAD 2
5 KHJ-MC10M-00 BOLT,HEX. S/H 2
6 KHJ-MC139-00 SHAFT,IDLE GEAR 1 1
7 KHJ-MC16J-00 SCREW,FLAT HEAD 4
8 KHJ-MC181-00 HANDLE 1
9 KHJ-MC182-00 TENSION,WIRE 1 1
10 KHJ-MC183-00 SPACER,TENSION 1 1
11 KHJ-MC184-00 SPACER,TENSION 2 3
12 KHJ-MC185-00 PIN,HANDLE 1
13 KHJ-MC186-00 WIRE,UNCLAMP 1
14 KHJ-MC187-00 SPRING,TENSION 1
15 KHJ-MC189-00 PIN,CLAMP 1
15-1 KHJ-MC189-01 PIN,CLAMP 1 (2008/6/25) NG
16 KHJ-MC18A-00 SPRING,CLAMP 1
17 KHJ-MC18B-00 COVER,WIRE 1 1
18 KHJ-MC18C-00 COVER,WIRE 2 1
19 KHJ-MC18F-00 CIRCLIP (E) 1
20 KHJ-MC18H-00 CLAMP LEVER ASSY. 1
20-1 KLJ-MC18H-00 CLAMP LEVER ASSY. 1 (2012/11/2) OK
21 91312-03008 BOLT HEX.SOCKET HEAD 2
22 92A08-03305 SCREW,SET 2
23 98702-03006 SCREW FLAT HEAD 1
24
KHJ-MC107-00 SHIM,FRONT BLOCK 1 1 0.01t
KHJ-MC108-00 SHIM,FRONT BLOCK 2 1 0.05t
KHJ-MC10G-00 SHIM,FRONT BLOCK 3 1 0.1t
KHJ-MC10U-00 SHIM,FRONT BLOCK 4 1 0.03t
KHJ-MC10V-00 SHIM,FRONT BLOCK 5 1 0.02t
|
| |
| |
|
|
