| KHJ-MC641-00,SS 44MM壓料蓋,YMH SS 44MM壓料蓋,雅馬哈電動飛達44MM壓料蓋 |
| 發佈時間：2017-7-22 15:14:28 閱讀：3297次 |

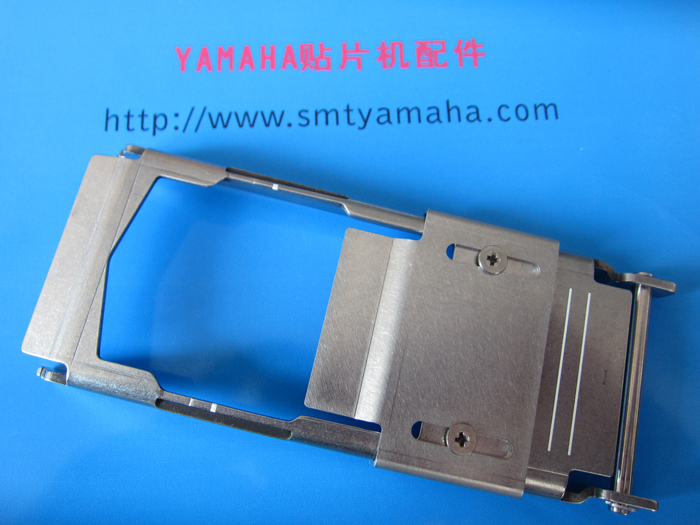

YAMAHA SS 44MM FEEDER压料盖
KHJ-MC641-00
TAPE GUIDE ASSY.
KHJ-MC641-01 TAPE GUIDE ASSY.(2008/05/28) OK
KHJ-MC641-02 TAPE GUIDE ASSY.(2009/03/02) NG
自主開發，廠家直銷
找我們購買沒有中間商賺差價
佳萬興公司專業YAMAHA貼片機配件
雅馬哈YS12/YS24/YS88/YS100/YSM10/YSM20/YSM40貼片機配零部件
深圳市佳萬興電子有限公司
手機/微信：13923705220

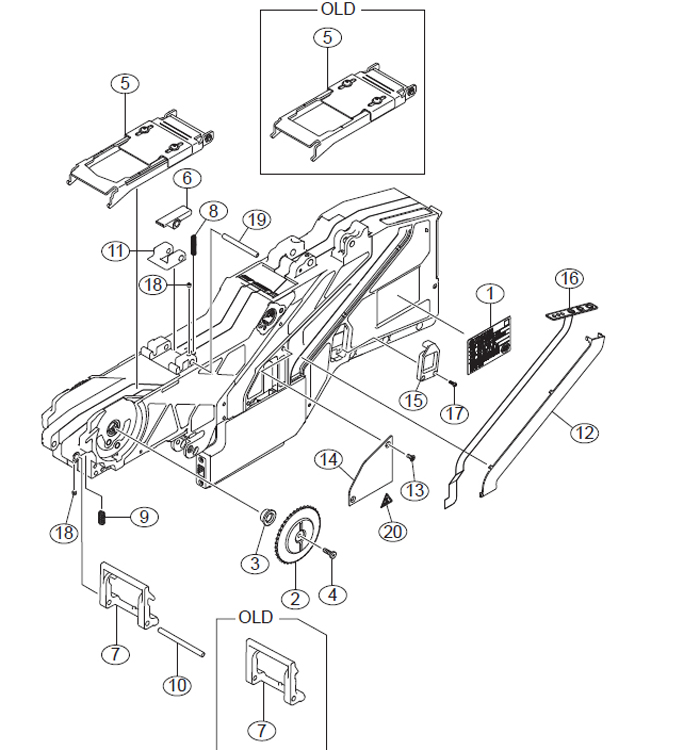

No. Part No. Part Name Q’ty Remarks Change Compati.
1 KHJ-MC60C-00 SEAL,MAIN LABEL 1
2 KHJ-MC532-00 SPROCKET 1
3
4 KHJ-MC53E-00 BOLT HEX.S/H LOW 1
5 KHJ-MC641-00 TAPE GUIDE ASSY. 1
5-1 KHJ-MC641-01 TAPE GUIDE ASSY. 1 (2008/5/28) OK
5-2 KHJ-MC641-02 TAPE GUIDE ASSY. 1 (2009/3/2) NG
6 KHJ-MC244-00 LEVER,TAPE GUIDE R 1
7 KHJ-MC645-00 LEVER,TAPE GUIDE F 1
7-1 KHJ-MC645-010 LEVER,TAPE GUIDE F 1 (2009/3/2) NG
8 KHJ-MC146-00 SPRING,TAPE GUIDE R 1
8-1 KHJ-MC146-02 SPRING,TAPE GUIDE R 1 (2009/3/2) NG
9 KHJ-MC247-00 SPRING,TAPE GUIDE F 1
9-1 KHJ-MC247-01 SPRING,TAPE GUIDE F 1 (2009/3/2) NG
10 KHJ-MC64E-00 SHAFT,LEVER 1
11 KHJ-MC64F-00 BASE,LEVER R 1
12 KHJ-MC167-00 COVER,MENBRANE 1
13 90990-09J008 SCREW,FLAT HEAD 2
14 KHJ-MC26K-00 COVER,MENBRANE 2 1
15 KHJ-MC1A5-00 DUMMY SPLICE SENS. 1
16 KHJ-MC1AA-00 SWITCH,OPERATION 1
17 90990-54J003 SCREW,PAN HEAD TAP. 2
18 92A08-03303 SET SCREW M3X3 2
19 99480-04040 PIN,PARALLEL 1
20 KHJ-MC64W-S0 HOOK TAPE GUIDE KIT 1 SI1002002
|
| |
| |
|
|
