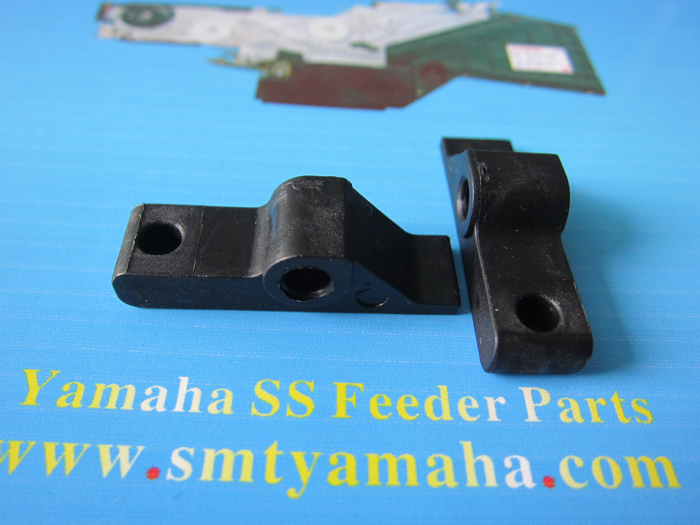

料號：KHJ-MC244-00
名稱：SS 12/16MM-88MM FEEDERS
LEVER,TAPE GUIDE R（SS款電子送料器保險扣）
佳萬興公司廠家直銷批發零售
佳萬興公司開發雅馬哈&天龍電動供料器配件
批發YAMAHA&i-Pulse貼片機F3款電動供料器配件
YAMAHA&i-Pulse
M10,M20,S10,S20送料器配件
備註：YAMAHA&i-Pulse電動飛達配件通用

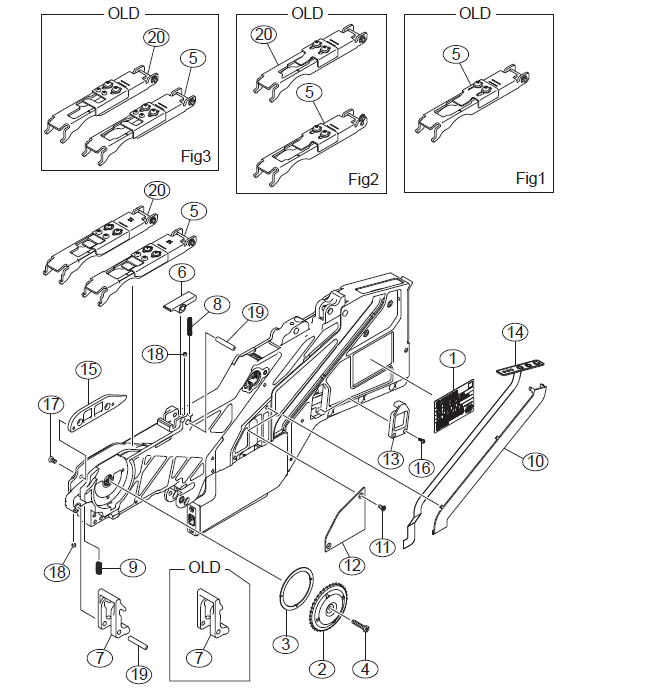

No. Part No. Part Name Q’ty Remarks Change Compati.
1 KHJ-MC40C-00 SEAL,MAIN LABEL 1
2 KHJ-MC132-00 SPROCKET 1
2-1 KHJ-MC132-01 SPROCKET ASSY. 1 Resin (2008/10/14) OK
2-2 KHJ-MC132-02 SPROCKET ASSY. 1 Metal (2011/4/27) OK
3 KHJ-MC23A-00 SHIM,SPROCKET 1
4 KHJ-MC43E-00 BOLT HEX.S/H LOW 1
5 KHJ-MC441-00 TAPE GUIDE ASSY. 1
5-1 KHJ-MC441-01 TAPE GUIDE ASSY. 1 (2008/5/17) OK
5-2 KHJ-MC441-03 TAPE GUIDE ASSY. 1 (2009/3/2) NG
5-3 KHJ-MC441-04 TAPE GUIDE ASSY. 1 (2009/7/72) OK
6 KHJ-MC244-00 LEVER,TAPE GUIDE R 1
7 KHJ-MC445-00 LEVER,TAPE GUIDE F 1
7-1 KHJ-MC445-01 LEVER,TAPE GUIDE F 1 (2009/3/2) NG
8 KHJ-MC146-00 SPRING,TAPE GUIDE R 1
8-1 KHJ-MC146-02 SPRING,TAPE GUIDE R 1 (2009/3/2) NG
9 KHJ-MC247-00 SPRING,TAPE GUIDE F 1
9-1 KHJ-MC247-01 SPRING,TAPE GUIDE F 1 (2009/3/2) NG
10 KHJ-MC167-00 COVER,MENBRANE 1
11 KHJ-MC16J-00 SCREW,FLAT HEAD 11
12 KHJ-MC26K-00 COVER,MENBRANE 2 1
13 KHJ-MC1A5-00 DUMMY SPLICE SENS. 1
14 KHJ-MC1AA-00 SWITCH,OPERATION 1
15 KHJ-MC1AB-00 SCREW,PAN HEAD TAP. 2
16 92A08-03303 SET SCREW M3X3 5
17 99480-04030 PIN,PARALLEL 2
18 KHJ-MC44W-S0 HOOK TAPE GUIDE KIT 1 SI1002002
19 92902-03200 WASHER PLAIN 1 (2008/10/14)
|
