KHJ-MC441-00,SS款24MM飛達壓料蓋,YSM20電動飛達壓料蓋,ZS 24MM壓料蓋
發佈時間:2017-7-11 7:41:03 閱讀:4041

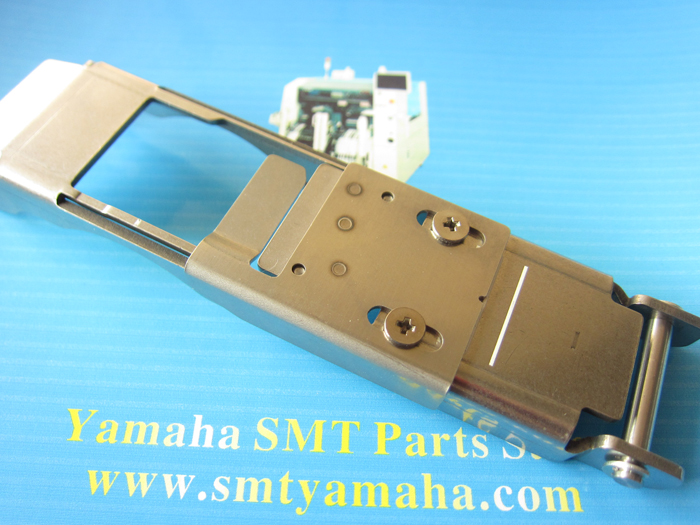

KHJ-MC441-00 TAPE GUIDE ASSY.OK
KHJ-MC441-01 TAPE GUIDE ASSY.(2008/05/17) OK
KHJ-MC441-03 TAPE GUIDE ASSY.(2009/03/02) NG
KHJ-MC441-04 TAPE GUIDE ASSY.(2009/07/72) OK

自主開發,廠家直銷
找我們購買沒有中間商賺差價
佳萬興公司專業YAMAHA貼片機配件

佳萬興人承諾:
1.七天無理由退換貨物 (來回運費佳萬興公司都來承擔我們的責任)
2.不管你購買我們多少價值的配件,佳萬興人都會全國包郵到你的手上(哪怕是個小小的螺絲丁,佳萬興公司會選擇最快捷的快遞公司,或者你指定哪個快遞公司都可以)
3. 全年365天無節假日,當天18:00下訂單,當天發貨。

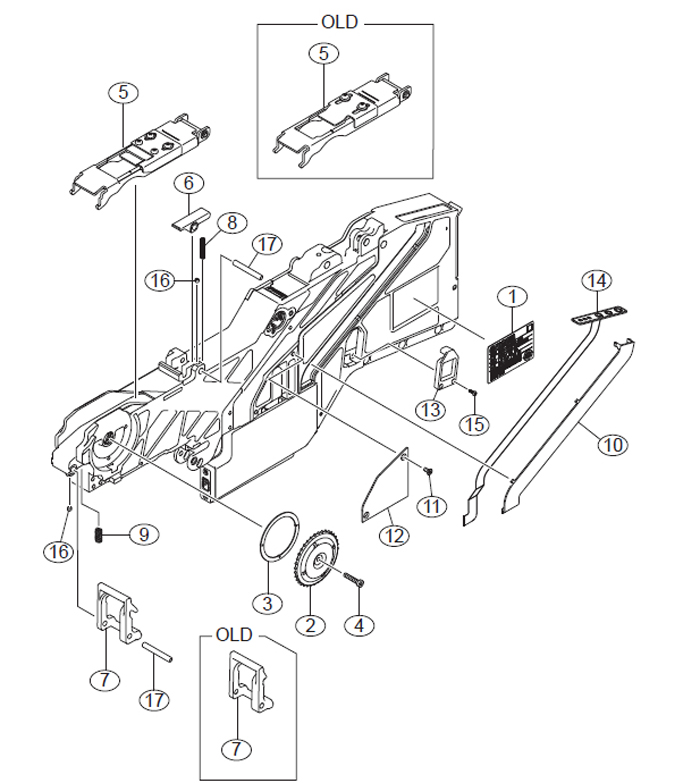

No. Part No. Part Name Q’ty Remarks Change Compati.
1 KHJ-MC40C-00 SEAL,MAIN LABEL 1
2 KHJ-MC132-00 SPROCKET 1
2-1 KHJ-MC132-01 SPROCKET ASSY. 1 Resin (2008/10/14) OK
2-2 KHJ-MC132-02 SPROCKET ASSY. 1 Metal (2011/4/27) OK
3 KHJ-MC23A-00 SHIM,SPROCKET 1
4 KHJ-MC43E-00 BOLT HEX.S/H LOW 1
5 KHJ-MC441-00 TAPE GUIDE ASSY. 1
5-1 KHJ-MC441-01 TAPE GUIDE ASSY. 1 (2008/5/17) OK
5-2 KHJ-MC441-03 TAPE GUIDE ASSY. 1 (2009/3/2) NG
5-3 KHJ-MC441-04 TAPE GUIDE ASSY. 1 (2009/7/72) OK
6 KHJ-MC244-00 LEVER,TAPE GUIDE R 1
7 KHJ-MC445-00 LEVER,TAPE GUIDE F 1
7-1 KHJ-MC445-01 LEVER,TAPE GUIDE F 1 (2009/3/2) NG
8 KHJ-MC146-00 SPRING,TAPE GUIDE R 1
8-1 KHJ-MC146-02 SPRING,TAPE GUIDE R 1 (2009/3/2) NG
9 KHJ-MC247-00 SPRING,TAPE GUIDE F 1
9-1 KHJ-MC247-01 SPRING,TAPE GUIDE F 1 (2009/3/2) NG
10 KHJ-MC167-00 COVER,MENBRANE 1
11 KHJ-MC16J-00 SCREW,FLAT HEAD 11
12 KHJ-MC26K-00 COVER,MENBRANE 2 1
13 KHJ-MC1A5-00 DUMMY SPLICE SENS. 1
14 KHJ-MC1AA-00 SWITCH,OPERATION 1
15 KHJ-MC1AB-00 SCREW,PAN HEAD TAP. 2
16 92A08-03303 SET SCREW M3X3 5
17 99480-04030 PIN,PARALLEL 2
18 KHJ-MC44W-S0 HOOK TAPE GUIDE KIT 1 SI1002002
19 92902-03200 WASHER PLAIN 1 (2008/10/14)
