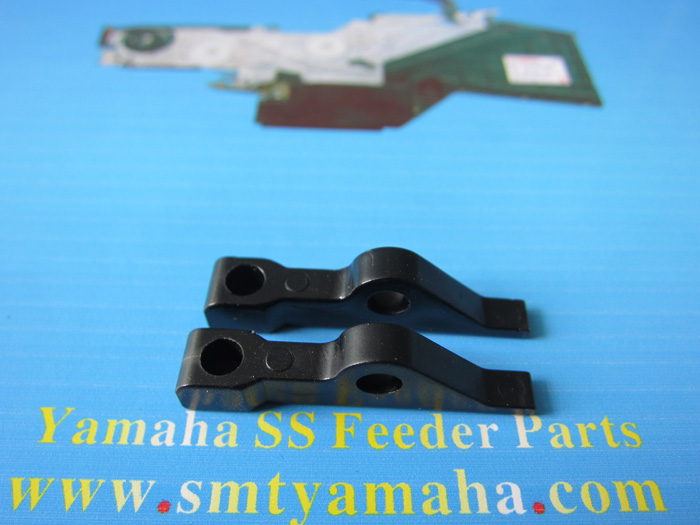

KHJ-MC144-00,SS 8MM壓料蓋保險扣,ZS 8MM壓料蓋保險扣,YSM20 FEEDER配件 |
發佈時間:2017-7-4 7:05:57 閱讀:2984次 |
佳萬興公司出品的YAMAHA SS款電動Feeder配件採用最新的德國先進航空製造技術和嚴格的軍工產品加工要求完成,符合歐洲ROHS檢測標準,物美價廉。
從這一刻開始,佳萬興公司將會成為您的最佳合作夥伴!
深圳市佳萬興電子有限公司
官網:www.SMTyamaha.com
手機/微信:13923705220
Q Q:1006998092

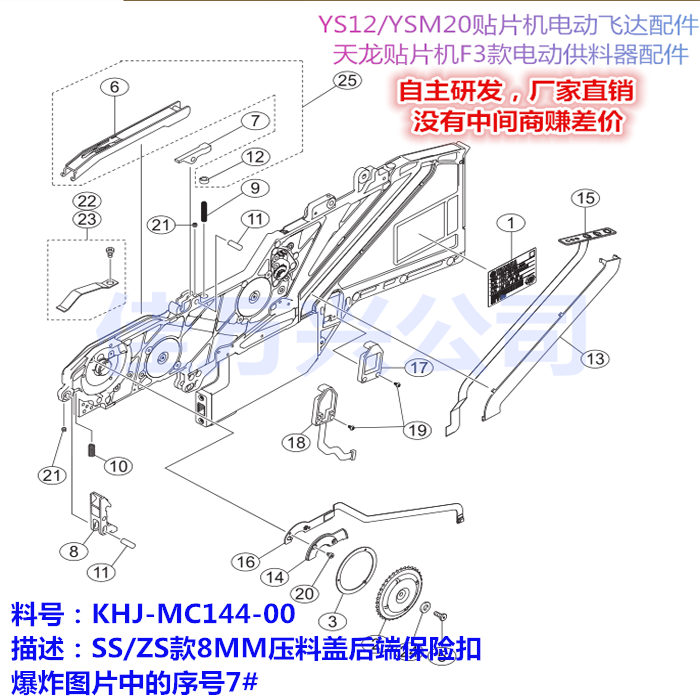

No. Part No. Part Name Q'ty Remarks Change Compati.
1 KHJ-MC10C-00 SEAL,MAIN LABEL 1
2 KHJ-MC131-00 SPROCKET ASSY. 1
2-1 KHJ-MC131-01 SPROCKET ASSY. 1 Resin (2008/10/14) OK
2-2 KHJ-MC131-02 SPROCKET ASSY. 1 Metal (2011/4/27) OK
3 KHJ-MC13A-00 SHIM,SPROCKET 1
4
5 90990-01J043 BOLT,EXTRA LOW HEAD 1
5-1 KHJ-MC13E-01 SCREW,SLIM HRAD 1 (2008/10/14) OK
6 KHJ-MC141-02 TAPE GUIDE 1
6-1 KHJ-MC141-03 TAPE GUIDE 1 Resin (2010/2/3) OK
6-2 KHJ-MC141-04 TAPE GUIDE. 1 Metal (2011/4/27) OK
6-3
KLJ-MC141-00 TAPE GUIDE 1 STD (2013/5/27) OK
KLJ-MC14A-00 TAPE GUIDE,W8P1 1 1mm Pitch (2012/5/10)
KLJ-MC14B-00 TAPE GUIDE,W8P4 1 4mm Pitch (2012/5/10)
7 KHJ-MC144-00 LEVER,TAPE GUIDE R 1
8 KHJ-MC145-00 LEVER,TAPE GUIDE F 1
8-1 KHJ-MC145-01 LEVER,TAPE GUIDE F 1 (2008/5/17) OK
9 KHJ-MC146-02 SPRING,TAPE GUIDE R 1
10 KHJ-MC147-02 SPRING,TAPE GUIDE F 1
11 KHJ-MC15A-00 SHAFT 112 2
12 KHJ-MC149-00 STOPPER,LEVER R 1 (2012/2/9)
13 KHJ-MC167-00 COVER,MENBRANE 1
14 KHJ-MC1A4-00 COVER,ABS 1
15 KHJ-MC1AA-00 SWITCH,OPERATION 1
16 KHJ-M4664-00 ABS BOARD ASSY. 1
17 KHJ-MC1A5-00 DUMMY SPLICE SENS. 1
18 KHJ-MC1A5-10 SPLICE SENS.8MM 1 OPTION
19 KHJ-MC1AB-00 SCREW,PAN HEAD TAP. 2
20 90115-02J003 BOLT HEX.SOCKET HEAD 2
21 92A08-03303 SET SCREW M3X3 2
22 KHJ-MC1C1-00 PLATE, SPRING ASSY. 1 OPTION (2010/8/3)
23 KHJ-MC1C1-10 PLATE, SPRING ASSY. 10 OPTION (2010/8/3)
24 92902-03200 WASHER PLAIN 1 (2008/10/14)
25
KHJ-MC141-S0 PARTS,TAPE GUIDE 1 STD (2012/3/16)
KHJ-MC14A-S0 PARTS,TAPE GUIDE P1 1 1mm Pitch (2012/5/10)
KHJ-MC14B-S0 PARTS,TAPE GUIDE P4 1 4mm Pitch (2012/5/10)
|
|
|
|
|
