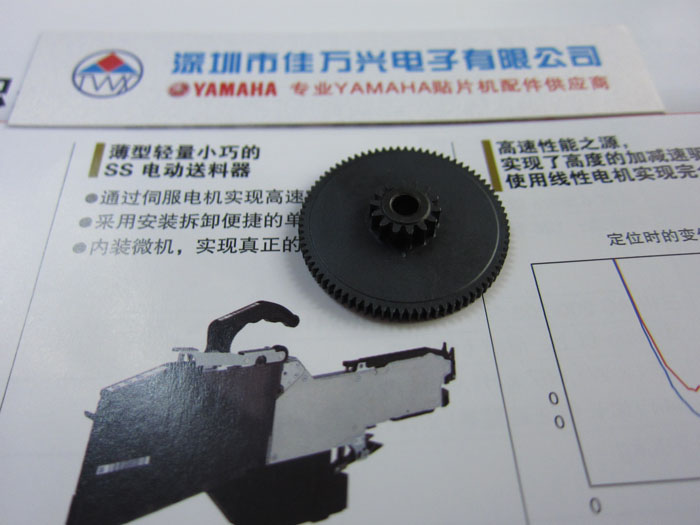

KHJ-MC534-01,SS 32MM進料金屬齒輪,SS 44MM金屬齒輪,YS12貼片機設備SS電動送料器配件 |
發佈時間:2017-6-27 12:07:43 閱讀:2382次 |
批發/批發/零售/零售/低價/低價
已開發YAMAHA
YS款飛達配件
大量批發SS款ZS電動飛達配件
YS12/YS24/YS88/YS100/YSM20/YSM40設備飛達配件
SMT同行大量批發中
廠家直銷批發零售中
歐洲品質,全球共用

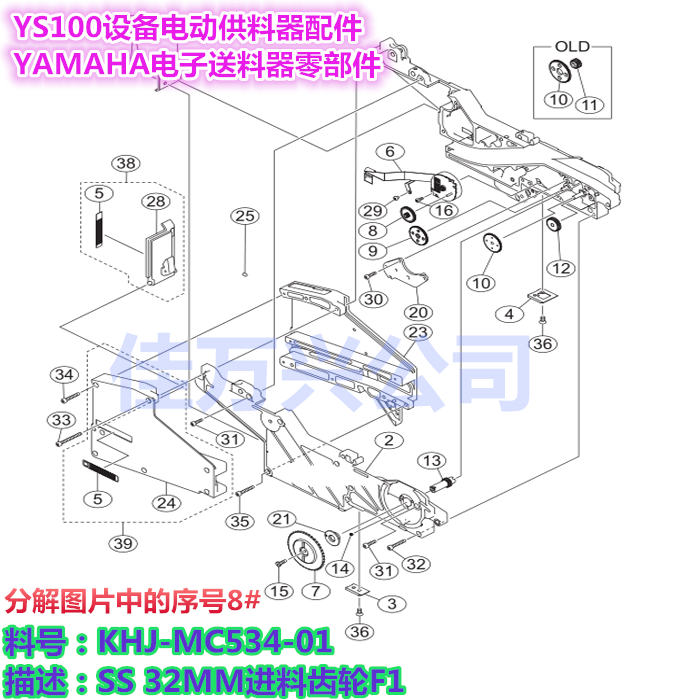

No. Part No. Part Name Q’ty Remarks Change Compati.
1
2 KHJ-MC502-00 COVER,FEEDER 1
3 KHJ-MC106-00 PLATE,UNDER 1
4 KHJ-MC206-00 PLATE,UNDER 1
5 KHJ-MC50C-00 SEAL,MAIN LABEL 1
*Attention
6 KHJ-MC510-00 MOTOR, FEED 1
6-1 KHJ-MC510-01 MOTOR, FEED 1 (2011/4/13) NG
7 KHJ-MC532-00 SPROCKET 1
8 KHJ-MC534-00 GEAR,IDLE F1 1
8-1 KHJ-MC534-01 GEAR,IDLE F1 1 (2010/3/5) OK
9 KHJ-MC535-00 GEAR,IDLE F2 1
10 KHJ-MC53R-00 GEAR,IDLE F3-1 1
10-1 KHJ-MC536-00 GEAR,IDLE F3 1 (2008/9/1)
11 KHJ-MC53S-00 GEAR,IDLE F3-2 1
11-1 Delete (2008/9/1)
12 KHJ-MC537-00 GEAR,IDLE F4 1
12-1 KHJ-MC53T-00 GEAR,IDLE F4 ASSY 1 (2010/3/5) OK
13 KHJ-MC538-00 GEAR,DRIVEN 1
14 KHJ-MC13D-00 SPRING,PUSHER PLATE 3
15 KHJ-MC53E-00 BOLT HEX.S/H LOW 1
16 90990-08J021 SCREW,STAD 2
20 KHJ-MC53L-00 COVER,FEED GEAR 1
21 KHJ-MC53M-00 SUB-BUSH,SPROCKET 1
22
23 KHJ-MC56Y-00 TOP TAPE BOX COMP. 1 With Magnet
24 KHJ-MC562-00 COVER,TOP TAPE BOX 1 Can not be sold
25 KHJ-MC165-00 MAGNET,TAIL 1
26 KHJ-MC566-00 BLOCK,P/O TOOTH 1 1
27 KHJ-MC46T-00 BOLT HEX.S/H LOW 2
28 KHJ-MC56U-00 TAIL COVER ASSY. 1 Can not be sold
29 90166-02JA03 SCREW,PAN HEAD 1
30 90115-2AJ008 BOLT HEX.SOCKET HEAD 3
31 91312-03012 BOLT,HEX.SOCKET HEAD 2
32 91312-03022 BOLT,HEX.SOCKET HEAD 5
33 91312-03030 BOLT,HEX.SOCKET HEAD 1
34 91317-03020 BOLT HEX.SOCKET HEAD 6
35 91317-03030 BOLT HEX.SOCKET HEAD 1
36 98707-03006 SCREW,FLAT HEAD 4
37
38 KHJ-MC56U-S0 PARTS, TAIL COVER 1
*Attention
39 KHJ-MC562-S0 PARTS, BOX COVER 1
*Attention
|
|
|
|
|
