KHJ-MC26V-00,佳萬興公司最新開發的SS款飛達配件,ZS電動料架配件
發佈時間:2017-5-16 13:41:26 閱讀:4306

自主開發,廠家直銷

找我們購買沒有中間商賺差價
佳萬興公司專業YAMAHA貼片機配件

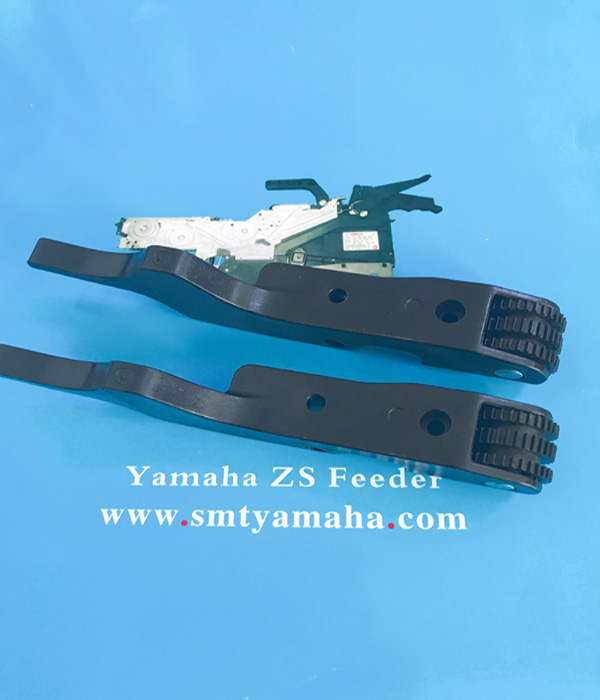

配件料號:KHJ-MC26V-00
配件描述:SSZS12MM,16MM P/O,卷料壓杆,杆子加齒輪套裝
物美價廉,歡迎採購

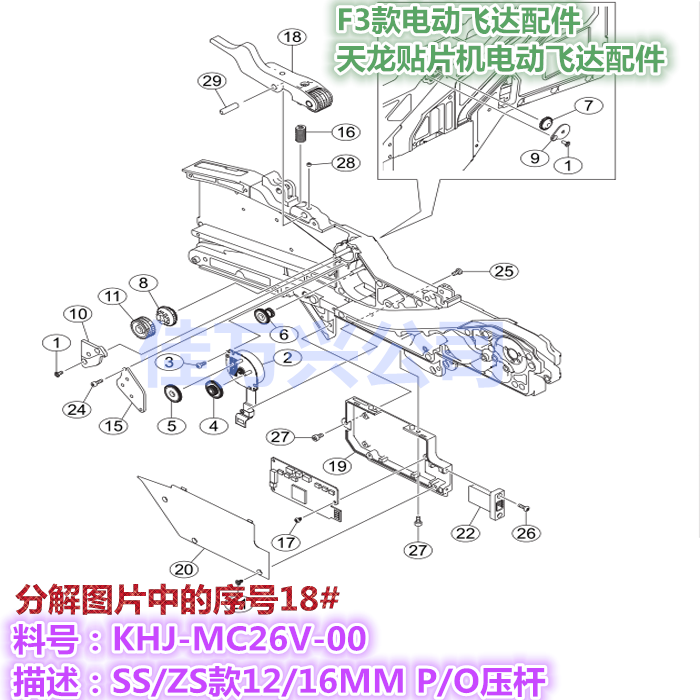

No. Part No. Part Name Q’ty Remarks Change Compati.

1 KHJ-MC10E-00 SCREW,FLAT HEXLOBE 11
2 KHJ-MC210-10 MOTOR, PEEL 1
2-1 KHJ-MC210-11 MOTOR, PEEL 1 (2011/4/13) NG
3 KHJ-MC13F-00 SCREW,STAD 4
4 KHJ-MC251-00 GEAR,IDLE P1 1
5 KHJ-MC252-00 GEAR,IDLE P2 1
6 KHJ-MC253-00 GEAR,IDLE P3 1
7 KHJ-MC254-00 GEAR,IDLE P4 1
8 KHJ-MC256-00 ROLLER,PEEL OFF 1 1
9 KHJ-MC258-00 COVER,IDLE GEAR 1 1
10 KHJ-MC259-00 COVER,IDLE GEAR 2 1
11 KHJ-MC25A-00 SUB-ROLLER,1 1
12
13
14
15 KHJ-MC25E-00 COVER,IDLE GEAR 3 1
16 KHJ-MC26E-00 SPRING,P/O LEVER 1
17 KHJ-MC16H-00 SCREW,PAN HEAD TAP. 3
18 KHJ-MC26V-00 P/O LEVER ASSY. 1
19 KHJ-MC1A1-00 BOX,EL 1
20 KHJ-MC1A2-00 COVER,BOX EL 1
21 KHJ-MC1A6-00 SCREW,FLAT HEXLOBE T 3
22 KHJ-MC1A9-00 CONNECTOR,BOARD 1
23
24 90115-2AJ008 BOLT HEX.SOCKET HEAD 2
25 90166-02JA03 SCREW,PAN HEAD 2
26 90166-02JA08 SCREW PAN H.:M2.5X8 2
27 91317-03006 BOLT HEX.SOCKET HEAD 3
27-1 KHJ-MC11T-00 BOLT,LOCK S/H 3 (2011/4/22) OK
28 92A08-03303 SET SCREW M3X3 5
29 99480-05018 PIN,PARALLEL 1
