| KHJ-MC66U-00,i-PULSE*YAMAHA M10/M20/S10/S20 F3款電動送料器配件 |
| 發佈時間：2015-11-24 18:06:52 閱讀：7158次 |
i-PULSE*YAMAHA M10/M20/S10/S20 F3款電動送料器配件
廠家直銷YAMAHA SS款/ZS款電子智能送料器配件。
雅馬哈YS12/YS12F/YS12P/YS24/YS24X/YS88/YS100/YSM20/YSM40貼片機Feeddr配件

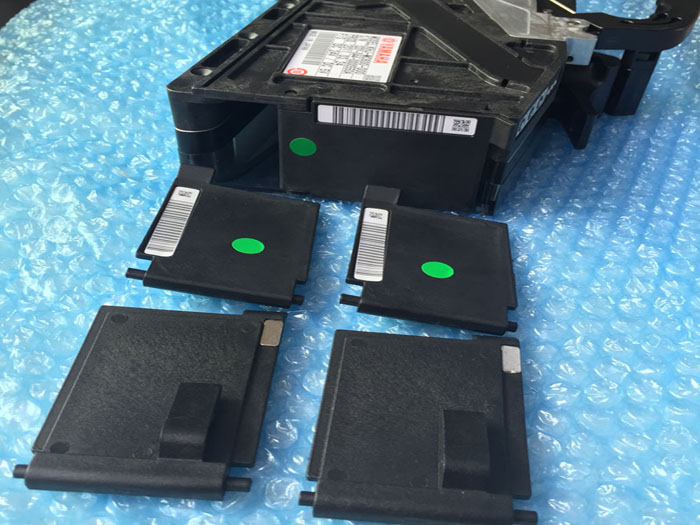

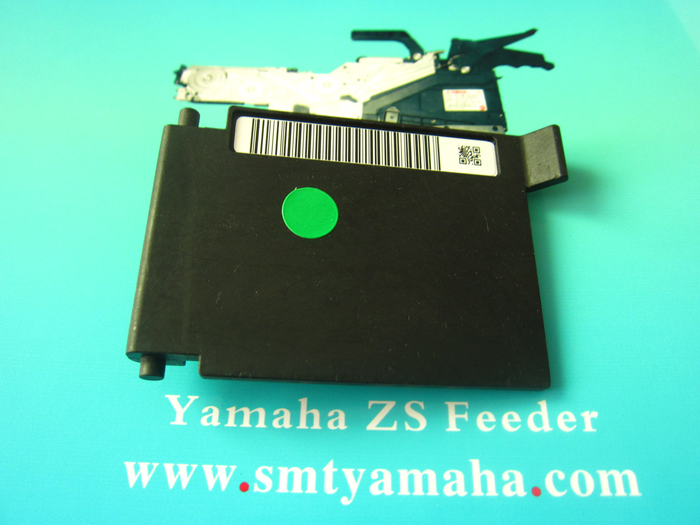

產品料號：KHJ-MC66U-00,44MM廢料帶尾巴蓋
產品料號：KHJ-MC66U-S0,44MM廢料帶尾巴蓋

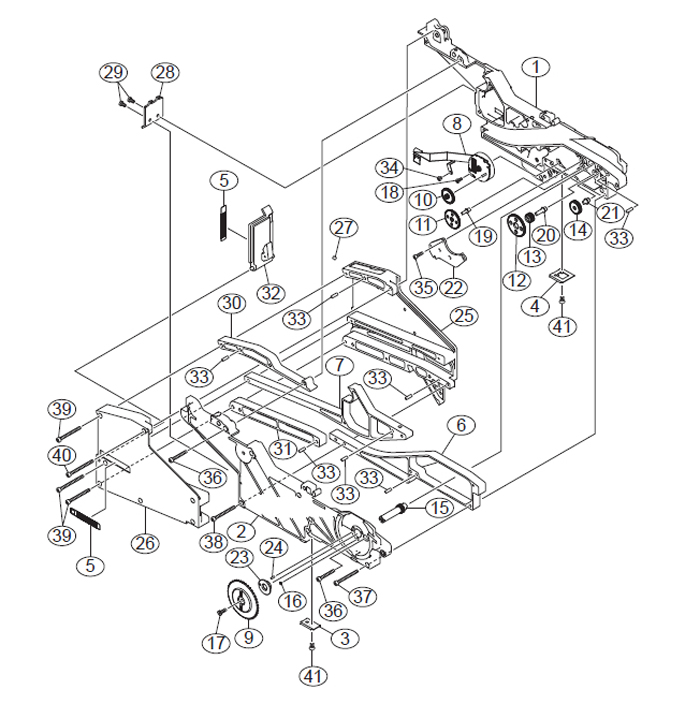

No. Part No. Part Name Q’ty Remarks Change Compati.
1
2 KHJ-MC502-00 COVER,FEEDER 1
3 KHJ-MC106-00 PLATE,UNDER 1
4 KHJ-MC206-00 PLATE,UNDER 1
5 KHJ-MC60C-00 SEAL,MAIN LABEL 1 *Attention
6 KHJ-MC60K-00 SPACER,44A 1
7 KHJ-MC60L-00 SPACER,44B 1
8 KHJ-MC510-00 MOTOR, FEED 1
8-1 KHJ-MC510-01 MOTOR, FEED 1 (2011/4/13) NG
9 KHJ-MC532-00 SPROCKET 1
10 KHJ-MC534-00 GEAR,IDLE F1 1
10-1 KHJ-MC534-01 GEAR,IDLE F1 1 (2010/3/5) OK
11 KHJ-MC535-00 GEAR,IDLE F2 1
12 KHJ-MC53R-00 GEAR,IDLE F3-1 1
12-1 KHJ-MC536-00 GEAR,IDLE F3 1 (2008/9/1)
13 KHJ-MC53S-00 GEAR,IDLE F3-2 1
13-1 Delete (2008/9/1)
14 KHJ-MC537-00 GEAR,IDLE F4 1
14-1 KHJ-MC53T-00 GEAR,IDLE F4 ASSY 1 (2010/3/5) OK
15 KHJ-MC638-00 GEAR,DRIVEN 1
16 KHJ-MC13D-00 SPRING,PUSHER PLATE 3
17 KHJ-MC53E-00 BOLT HEX.S/H LOW 1
18 90990-08J021 SCREW,STAD 2
22 KHJ-MC53L-00 COVER,FEED GEAR 1
23 KHJ-MC53M-00 SUB-BUSH,SPROCKET 1
24
25 KHJ-MC56Y-00 TOP TAPE BOX COMP. 1 With Magnet
26 KHJ-MC562-00 COVER,TOP TAPE BOX 1 Can not be sold
27 KHJ-MC165-00 MAGNET,TAIL 1
28 KHJ-MC666-00 BLOCK,P/O TOOTH 1 1
29 KHJ-MC46T-00 BOLT HEX.S/H LOW 2
30 KHJ-MC66R-00 SPACER,44C 1
31 KHJ-MC66S-00 SPACER,44D 1
32 KHJ-MC66U-00 TAIL COVER ASSY. 1 Can not be sold
33 KHJ-MC60J-00 PIN,PARALLEL 16
34 90166-02JA03 SCREW,PAN HEAD 1
35 90115-2AJ008 BOLT HEX.SOCKET HEAD 3
36 91312-03025 BOLT,HEX.SOCKET HEAD 2
37 91312-03035 BOLT,HEX.SOCKET HEAD 5
38 91312-03040 BOLT,HEX.SOCKET HEAD 1
39 91317-03035 BOLT HEX.SOCKET HEAD 6
40 91317-03040 BOLT HEX.SOCKET HEAD 1
41 98707-03006 SCREW,FLAT HEAD 4
42 KHJ-MC66U-S0 PARTS, TAIL COVER 1 *Attention
43 KHJ-MC662-S0 PARTS, BOX COVER 1 *Attention
|
| |
| |
|
|
