i-PULSE*YAMAHA
M10/M20/S10/S20 F3款電動送料器配件
大量批發SS款ZS款電動飛達配件
已開發YAMAHA YS系列貼片機YSM系列貼片機飛達配件
YS12/YS24/YS88/YS100/YC8/YSM20/YSM40貼片機配件
SMT同行大量批發中!
廠家直銷批發零售中!
歐洲品質,全球共用!

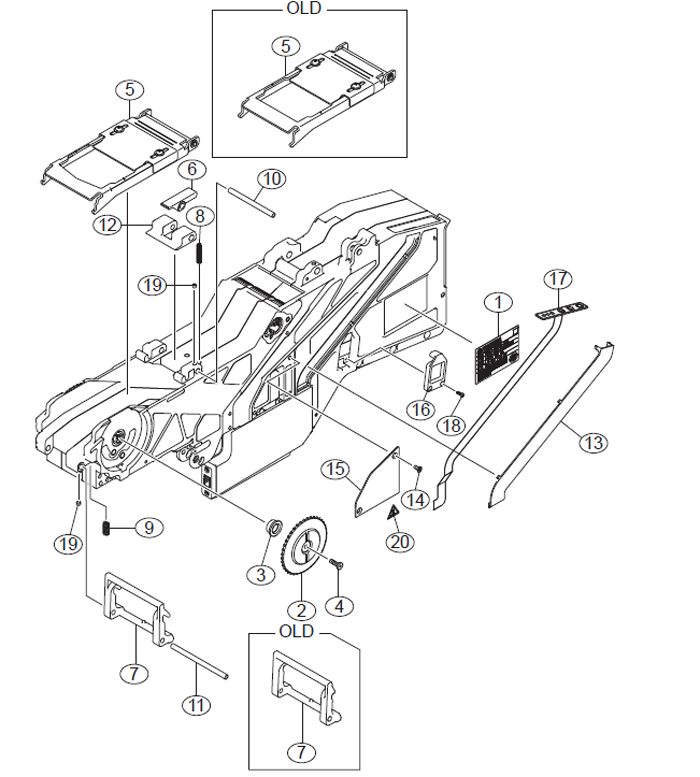

No. Part No. Part Name Q’ty Remarks Change Compati.
1 KHJ-MC70C-00 SEAL,MAIN LABEL 1
2 KHJ-MC532-00 SPROCKET 1
3
4 KHJ-MC53E-00 BOLT HEX.S/H LOW 1
5 KHJ-MC741-00 TAPE GUIDE ASSY. 1
5-1 KHJ-MC741-01 TAPE GUIDE ASSY. 1 (2008/5/8) OK
5-2 KHJ-MC741-02 TAPE GUIDE ASSY. 1 (2009/3/2) NG
6 KHJ-MC244-00 LEVER,TAPE GUIDE R 1
7 KHJ-MC745-00 LEVER,TAPE GUIDE F 1
7-1 KHJ-MC745-01 LEVER,TAPE GUIDE F 1 (2009/3/2) NG
8 KHJ-MC146-00 SPRING,TAPE GUIDE R 1
8-1 KHJ-MC146-02 SPRING,TAPE GUIDE R 1 (2009/3/2) NG
9 KHJ-MC247-00 SPRING,TAPE GUIDE F 1
9-1 KHJ-MC247-01 SPRING,TAPE GUIDE F 1 (2009/3/2) NG
10 KHJ-MC64E-00 SHAFT,LEVER 1
11 KHJ-MC74E-00 SHAFT,LEVER 1
12 KHJ-MC74F-00 BASE,LEVER R 1
13 KHJ-MC167-00 COVER,MENBRANE 1
14 90990-09J008 SCREW,FLAT HEAD 2
15 KHJ-MC26K-00 COVER,MENBRANE 2 1
16 KHJ-MC1A5-00 DUMMY SPLICE SENS. 1
17 KHJ-MC1AA-00 SWITCH,OPERATION 1
18 90990-54J003 SCREW,PAN HEAD TAP. 2
19 92A08-03303 SET SCREW M3X3 2
20 KHJ-MC74W-S0 HOOK TAPE GUIDE KIT 1 SI1002002
|
