   您當前的位置:首頁 - 產品中心
 雅马哈SS款配件 >> 12/16MM-72MM 塑膠蓋子
12/16MM-72MM 塑膠蓋子
Add date:2015-6-13 19:39:46   Hits:7400
12/16MM-72MM 塑膠蓋子
產品名稱: 12/16MM-72MM 塑膠蓋子
產品料號: KHJ-MC26K-00
產品備註: 適用於雅馬哈貼片機SS/ZS款電動智能送料器上

產 品 說 明

大量批發SS款ZS款電動飛達配件

已開發YAMAHA YS系列貼片機YSM系列貼片機飛達配件

YS12/YS24/YS88/YS100/YC8/YSM20/YSM40貼片機配件

SMT同行大量批發中!

廠家直銷批發零售中!

歐洲品質,全球共用!

全球最低價!

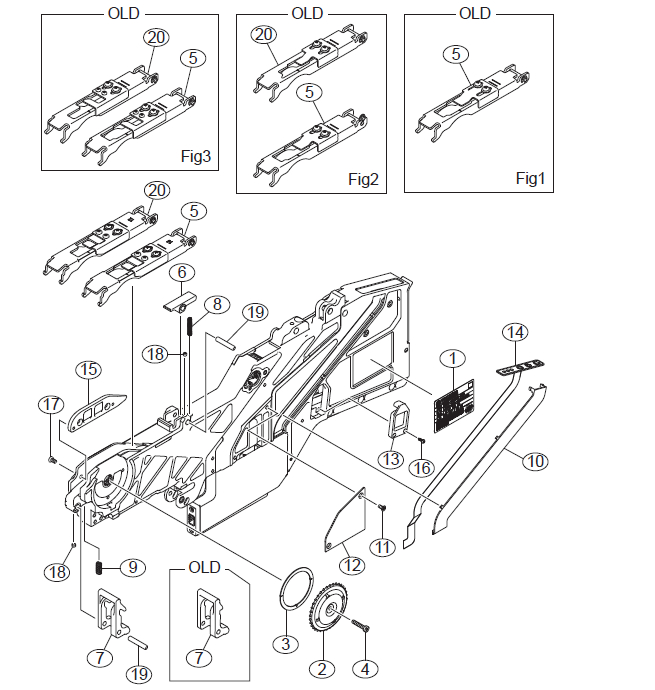

No. Part No. Part Name Q'ty Remarks Change Compati.
1 KHJ-MC20C-00 SEAL,MAIN LABEL 1
2 KHJ-MC132-00 SPROCKET 1
3 KHJ-MC23A-00 SHIM,SPROCKET 1
4 KHJ-MC23E-00 BOLT HEX.S/H LOW 1
5 KHJ-MC241-00 TAPE GUIDE ASSY. 1 Fig1
5-1 KHJ-MC241-01 TAPE GUIDE ASSY. 16 1 Fig2 (2008/5/16) NG
5-2 KHJ-MC241-02 TAPE GUIDE ASSY. 16 1 Fig3 (2008/11/18) OK
5-3 KHJ-MC241-03 TAPE GUIDE ASSY. 16 1 16mm Use (2009/2/23) NG
6 KHJ-MC244-00 LEVER,TAPE GUIDE R 1
7 KHJ-MC245-00 LEVER,TAPE GUIDE F 1
7-1 KHJ-MC245-01 LEVER,TAPE GUIDE F 1 (2009/2/23) NG
8 KHJ-MC146-02 SPRING,TAPE GUIDE R 1
9 KHJ-MC247-00 SPRING,TAPE GUIDE F 1
9-1 KHJ-MC247-01 SPRING,TAPE GUIDE F 1 (2009/2/23) NG
10 KHJ-MC167-00 COVER,MENBRANE 1
11 KHJ-MC16J-00 SCREW,FLAT HEAD 11
12 KHJ-MC26K-00 COVER,MENBRANE 2 1
13 KHJ-MC1A5-00 DUMMY SPLICE SENS. 1
14 KHJ-MC1AA-00 SWITCH,OPERATION 1
15 KHJ-MC24D-00 PLATE,GUIDE 12 1
16 KHJ-MC1AB-00 SCREW,PAN HEAD TAP. 2
17 98707-03006 SCREW,FLAT HEAD 5
18 92A08-03303 SET SCREW M3X3 5
19 99480-04022 PIN,PARALLEL 2
20 KHJ-MC24J-00 TAPE GUIDE ASSY.12 1 Fig2 (2008/5/17)
20-1 KHJ-MC24J-01 TAPE GUIDE ASSY.12 1 Fig3 (2008/11/18) OK
20-2 KHJ-MC24J-02 TAPE GUIDE ASSY.12 1 12mm Use (2009/2/23) NG
