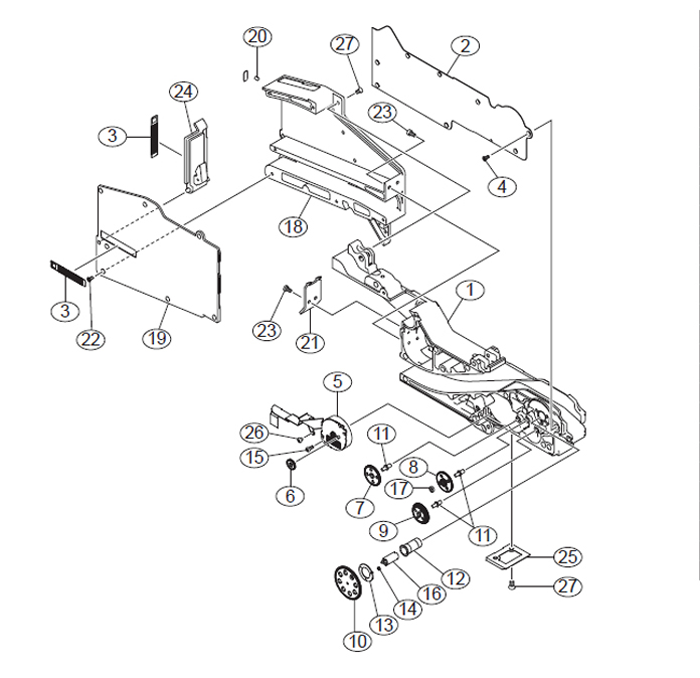

No. Part No. Part Name Q'ty Remarks
1 KHJ-MC401-00 BODY,FEEDER 1
2 KHJ-MC202-00 COVER,FEEDER SIDE 1 1
3 KHJ-MC40C-00 SEAL,MAIN LABEL 1
4 KHJ-MC10E-00 SCREW,FLAT HEXLOBE 11
5 KHJ-MC210-00 MOTOR, FEED 1
6 KHJ-MC134-00 GEAR,IDLE F1 1
7 KHJ-MC135-00 GEAR,IDLE F2 1
8 KHJ-MC136-01 GEAR,IDLE F3 1
9 KHJ-MC137-00 GEAR,IDLE F4 1
10 KHJ-MC238-00 GEAR,DRIVEN 1
11 KHJ-MC239-00 SHAFT,IDLE GEAR 1 3
12 KHJ-MC43B-00 BUSH,SPROCKET 1
13 KHJ-MC23C-00 PLATE,PUSHER GEAR 1
14 KHJ-MC13D-00 SPRING,PUSHER PLATE 3
15 KHJ-MC13F-00 SCREW,STAD 4
16 KHJ-MC43G-00 SHAFT,GEAR DRIVEN 1
17 KHJ-MC13P-00 SPACER,F3 1
18 KHJ-MC461-00 BOX,TOP TAPE 1
19 KHJ-MC262-00 COVER,TOP TAPE BOX 1
20 KHJ-MC165-00 MAGNET,TAIL 1
21 KHJ-MC466-00 BLOCK,P/O TOOTH 1 1
22 KHJ-MC16J-00 SCREW,FLAT HEAD 11
23 KHJ-MC46T-00 BOLT HEX.S/H LOW 4
24 KHJ-MC46U-00 TAIL COVER ASSY. 1
25 KHJ-MC406-00 PLATE,UNDER 1
26 90166-02JA03 SCREW,PAN HEAD 2
27 98707-03006 SCREW,FLAT HEAD 5
|
