本公司已開發YAMAHA/YS12/YS12F/YS12P/YS24/YS24X/YS88/YS100/YC8/YSM40高速智慧模組貼片機電動/電子SS/ZS款FEEDER消耗品配件.
Japan日本原廠進口技術,品質有保證,與原廠壽命相同,國產價格,歡迎來電諮詢!

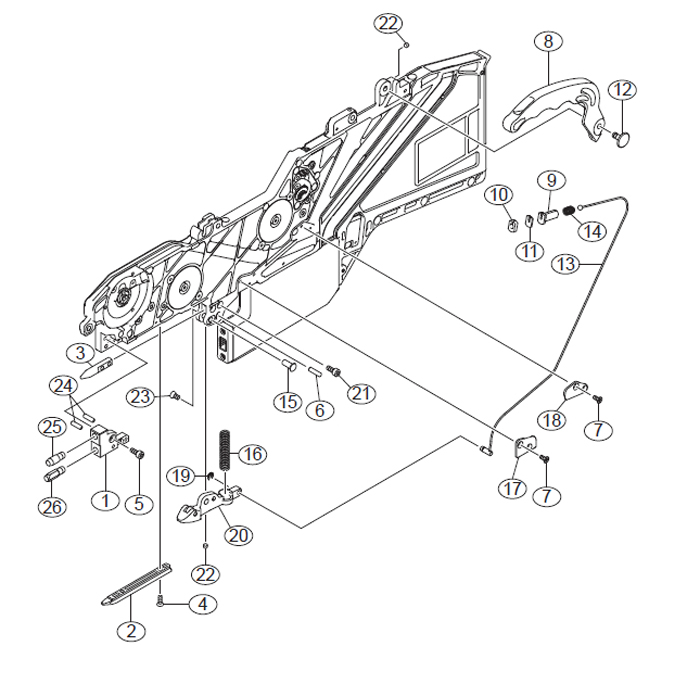

No. Part No. Part Name Q'ty Remarks Change Compati. 1 KHJ-MC103-02 BLOCK,FRONT 1 2 KHJ-MC104-00 RAIL,UNDER 1 3 KHJ-MC105-00 PIN,TAIL 1 4 KHJ-MC10F-00 SCREW,FLAT HEAD 2 5 KHJ-MC10M-00 BOLT,HEX. S/H 2 6 KHJ-MC139-00 SHAFT,IDLE GEAR 1 1 7 KHJ-MC16J-00 SCREW,FLAT HEAD 6 8 KHJ-MC181-00 HANDLE 1 9 KHJ-MC182-00 TENSION,WIRE 1 1 10 KHJ-MC183-00 SPACER,TENSION 1 1 11 KHJ-MC184-00 SPACER,TENSION 2 3 12 KHJ-MC185-00 PIN,HANDLE 1 13 KHJ-MC186-00 WIRE,UNCLAMP 1 14 KHJ-MC187-00 SPRING,TENSION 1 15 KHJ-MC189-00 PIN,CLAMP 1 15-1 KHJ-MC189-01 PIN,CLAMP 1 (2008/6/25) NG 16 KHJ-MC18A-00 SPRING,CLAMP 1 17 KHJ-MC18B-00 COVER,WIRE 1 1 18 KHJ-MC18C-00 COVER,WIRE 2 1 19 KHJ-MC18F-00 CIRCLIP (E) 1 20 KHJ-MC18H-00 CLAMP LEVER ASSY. 1 21 91312-03008 BOLT HEX.SOCKET HEAD 2 22 92A08-03305 SCREW,SET 2 23 98702-03006 SCREW FLAT HEAD 1 24 99480-03010 PIN,PARALLEL 2 23 98702-03006 SCREW FLAT HEAD 1 24 99480-03010 PIN,PARALLEL 2 25 KHJ-MC10S-00 PIN,LOCATE 1 1 26 KHJ-MC10T-00 PIN,LOCATE 2 |
