   您當前的位置:首頁 - 產品中心
 雅马哈SS款配件 >> 8MM 平頭螺杆
8MM 平頭螺杆
Add date:2008-10-1 21:46:23   Hits:7284
8MM 平頭螺杆
產品名稱: 8MM 平頭螺杆
產品料號: KHJ-MC16F-00
產品備註: 適用於雅馬哈貼片機SS款電動智能送料器上

產 品 說 明

大量批發SS款ZS款電動飛達配件

已開發YAMAHA YS系列貼片機YSM系列貼片機飛達配件

YS12/YS24/YS88/YS100/YC8/YSM20/YSM40貼片機配件

SMT同行大量批發中!

廠家直銷批發零售中!

歐洲品質,全球共用!

全球最低價!

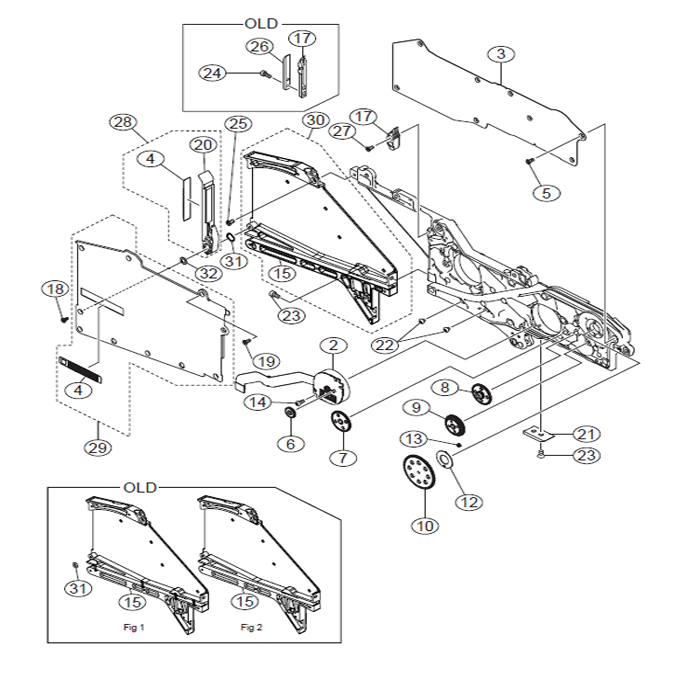

 No. Part No. Part Name Q'ty Remarks Change Compati.
2 KHJ-MC110-00 MOTOR,FEED 1
2-1 KHJ-MC110-01 MOTOR,FEED 1 Different connector (2011/4/13) NG
3 KHJ-MC102-00 COVER,FEEDER SIDE 1 1
4 KHJ-MC10C-00 SEAL,MAIN LABEL 1 *Attention
5 KHJ-MC10E-00 SCREW,FLAT HEXLOBE 8
6 KHJ-MC134-00 GEAR,IDLE F1 1
7 KHJ-MC135-00 GEAR,IDLE F2 1
8 KHJ-MC136-01 GEAR,IDLE F3 1
9 KHJ-MC137-00 GEAR,IDLE F4 1
10 KHJ-MC138-00 GEAR,DRIVEN 1
12 KHJ-MC13C-00 PLATE,PUSHER GEAR 1
13 KHJ-MC13D-00 SPRING,PUSHER PLATE 3
14 KHJ-MC13F-00 SCREW,STAD 2
15 KHJ-MC161-01 BOX,TOP TAPE 1 Fig 1
15-1 KHJ-MC161-02 BOX,TOP TAPE 1 Fig 2 (2008/5/14) NG
15-2 KHJ-MC161-03 BOX,TOP TAPE 1 (2013/10/11) NG
17 KHJ-MC166-00 BLOCK,P/O TOOTH 1 1
17-1 KHJ-MC166-01 BLOCK,P/O TOOTH 1 1 (2008/4/25) NG
17-2 KHJ-MC166-02 BLOCK,P/O TOOTH 1 1 (2008/11/14) NG
18 KHJ-MC16F-00 SCREW,FLAT HEAD TAP. 6
19 KHJ-MC16J-00 SCREW,FLAT HEAD 2
20 KHJ-MC16U-00 TAIL COVER ASSY. 1 Can not be sold
21 KHJ-MC106-00 PLATE,UNDER 1
22 90166-02JA03 SCREW,PAN HEAD 2
23 91317-03006 BOLT HEX.SOCKET HEAD 3
23-1 KHJ-MC11T-00 BOLT,LOCK S/H 3 (2011/4/22) OK
24 91317-03008 BOLT HEX.SOCKET HEAD 2
24-1 91312-03010 BOLT HEX.SOCKET HEAD 2 (2008/4/11) OK
25 98707-03006 SCREW,FLAT HEAD 3
26 KHJ-MC16W-00 PLATE,P/O TOOTH 1 1 (2008/4/11)
27 90112-2AJ006 BOLT HEX.SOCKET HEAD 2 (2008/4/25)
28 KHJ-MC16U-S0 PARTS, TAIL COVER 1 *Attention
29 KHJ-MC162-S0 PARTS, BOX COVER 1 *Attention (2008/7/18) NG
30 KHJ-MC16Y-00 TOP TAPE BOX COMP. 1 With Magnet
31 KHJ-MC16K-00 POLY WASHER 0.13 1 (2011/6/13)
31-1 KLJ-MC1F2-00 WAVE WASHER T.C. 1 (2013/10/11) NG
32 KHJ-MC1FB-00 SHIM,0.3 1 (2013/10/11)
