 雅马哈SS款配件 >> 8MM-88MM 排線外蓋
8MM-88MM 排線外蓋
Add date:2008-10-1 20:54:53   Hits:7429
8MM-88MM 排線外蓋
產品名稱: 8MM-88MM 排線外蓋
產品料號: KHJ-MC1A3-00
產品備註: 適用於雅馬哈貼片機SS款電動智能送料器上

產 品 說 明

大量批發SS款ZS款電動飛達配件

已開發YAMAHA YS系列貼片機YSM系列貼片機飛達配件

YS12/YS24/YS88/YS100/YC8/YSM20/YSM40貼片機配件

SMT同行大量批發中!

廠家直銷批發零售中!

歐洲品質,全球共用!

全球最低價!

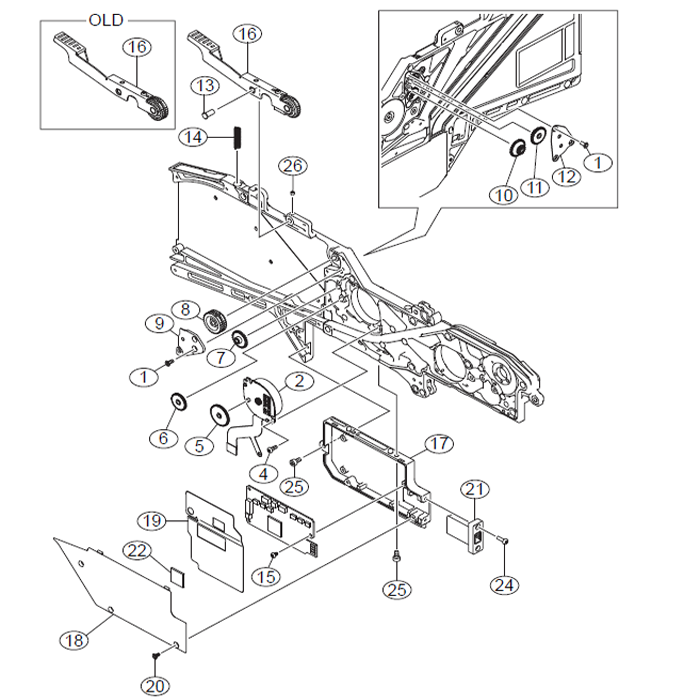

 No. Part No. Part Name Q’ty Remarks Change Compati.
1 KHJ-MC10E-00 SCREW,FLAT HEXLOBE 5
2 KHJ-MC110-10 MOTOR,PEEL 1
2-1 KHJ-MC110-11 MOTOR,PEEL 1 Different connector (2011/4/13) NG
3
4 KHJ-MC13F-00 SCREW,STAD 2
5 KHJ-MC151-00 GEAR,IDLE P1 1
6 KHJ-MC152-00 GEAR,IDLE P2 1
7 KHJ-MC153-00 GEAR,IDLE P3 1
8 KHJ-MC156-00 ROLLER,P/O 1 1
8-1 KHJ-MC156-01 ROLLER,P/O 1 1 (2008/4/25) NG
8-2 KHJ-MC156-02 ROLLER,P/O 1 1 (2008/11/14) NG
9 KHJ-MC159-00 COVER,IDLE GEAR 2 1
10 KHJ-MC154-00 GEAR,IDLE P4 1
11 KHJ-MC155-00 GEAR,IDLE P5 1
12 KHJ-MC158-00 COVER,IDLE GEAR 1 1
13 KHJ-MC16B-00 SHAFT,P/O LEVER 2 1
14 KHJ-MC16E-00 SPRING,P/O LEVER 1
15 KHJ-MC16H-00 SCREW,PAN HEAD TAP. 3
16 KHJ-MC16V-00 P/O LEVER ASSY. 1
16-1 KHJ-MC16V-01 P/O LEVER ASSY. 1 (2008/6/24) OK
16-2 KHJ-MC16V-02 P/O LEVER ASSY. 1 (2008/11/14) NG
17 KHJ-MC1A1-00 BOX,EL 1
18 KHJ-MC1A2-00 COVER,BOX EL 1
19 KHJ-MC1A3-00 COVER,CABLE 1
19-1 KHJ-MC1A3-01 COVER,CABLE 1 (2008/4/25) NG
20 KHJ-MC1A6-00 SCREW,FLAT HEXLOBE T 3
21 KHJ-MC1A9-00 CONNECTOR,BOARD 1
22 KHJ-MC1AC-00 INSULATION SHEET 1
23
24 90166-02JA08 SCREW PAN H.:M2.5X8 2
25 91317-03006 BOLT HEX.SOCKET HEAD 3
25-1 KHJ-MC11T-00 BOLT,LOCK S/H 3 (2011/4/22) OK
26 92A08-03303 SET SCREW M3X3 1
