ZS56MM电动料架金属废料盖
发布时间:2020-10-5 14:15:14 阅读:4347次
产品名称: |
ZS56MM电动料架金属废料盖 |
产品料号: |
KLJ-MC763-00 |
产品备注: |
|
产 品 说 明 |
欢迎保存电话,添加微信,合作共赢
深圳市佳万兴电子有限公司
手机/微信:138 2354 5220 张先生
手机/微信:150 1272 2635 单女士
SMT同行大量批发中
厂家直销批发零售中
YAMAHA YS12/YS24/YS88/YS100/YSM10/YSM20/YSM20W/YSM40R/YRM20贴片机配件
YAMAHA SS飞达配件开发 生产 销售
YAMAHA ZS飞达配件开发 生产 销售
YAMAHA 电动飞达维修 保养 校正 检测
YAMAHA ZS SS 4MM-104MM电动飞达租赁 出租 回收 买卖 置换 相关业务

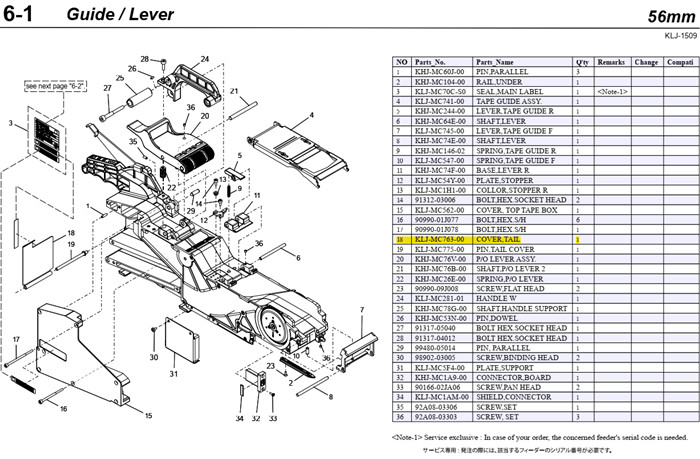

NO Parts_No. Parts_Name Q'ty Remarks Change Compati
1 KHJ-MC60J-00 PIN,PARALLEL 3
2 KHJ-MC104-00 RAIL,UNDER 1
3 KLJ-MC70C-S0 SEAL,MAIN LABEL 1 <Note-1>
4 KLJ-MC741-00 TAPE GUIDE ASSY. 1
5 KHJ-MC244-00 LEVER,TAPE GUIDE R 1
6 KHJ-MC64E-00 SHAFT,LEVER 1
7 KLJ-MC745-00 LEVER,TAPE GUIDE F 1
8 KHJ-MC74E-00 SHAFT,LEVER 1
9 KHJ-MC146-02 SPRING,TAPE GUIDE R 1
10 KLJ-MC547-00 SPRING,TAPE GUIDE F 1
11 KHJ-MC74F-00 BASE,LEVER R 1
12 KLJ-MC54Y-00 PLATE,STOPPER 1
13 KLJ-MC1H1-00 COLLOR,STOPPER R 1
14 91312-03006 BOLT,HEX.SOCKET HEAD 2
15 KLJ-MC562-00 COVER, TOP TAPE BOX 1
16 90990-01J077 BOLT,HEX.S/H 6
17 90990-01J078 BOLT,HEX.S/H 1
18 KLJ-MC763-00 COVER,TAIL 1
19 KLJ-MC775-00 PIN,TAIL COVER 1
20 KHJ-MC76V-00 P/O LEVER ASSY. 1
21 KHJ-MC76B-00 SHAFT,P/O LEVER 2 1
22 KHJ-MC26E-00 SPRING,P/O LEVER 1
23 90990-09J008 SCREW,FLAT HEAD 2
24 KLJ-MC281-01 HANDLE W 1
25 KHJ-MC78G-00 SHAFT,HANDLE SUPPORT 1
26 KHJ-MC53N-00 PIN,DOWEL 1
27 91317-05040 BOLT HEX.SOCKET HEAD 1
28 91317-04012 BOLT HEX.SOCKET HEAD 1
29 99480-05014 PIN, PARALLEL 1
30 98902-03005 SCREW,BINDING HEAD 2
31 KLJ-MC5F4-00 PLATE,SUPPORT 1
32 KHJ-MC1A9-00 CONNECTOR,BOARD 1
33 90166-02JA06 SCREW,PAN HEAD 2
34 KLJ-MC1AM-00 SHIELD,CONNECTOR 1
35 92A08-03306 SCREW,SET 1
36 92A08-03303 SCREW, SET 3
|
|
|
