首页 - 产品中心 >>   雅马哈ZS款配件 >> SS/ZS 4MM/8MM P/O杆齿轮

SS/ZS 4MM/8MM P/O杆齿轮

发布时间:2016-12-7 17:20:39   阅读:7236
SS/ZS 4MM/8MM P/O杆齿轮
产品名称: SS/ZS 4MM/8MM P/O杆齿轮
产品料号: KHJ-MC169-02
产品备注: SS/ZS 4MM/8MM

产 品 说 明

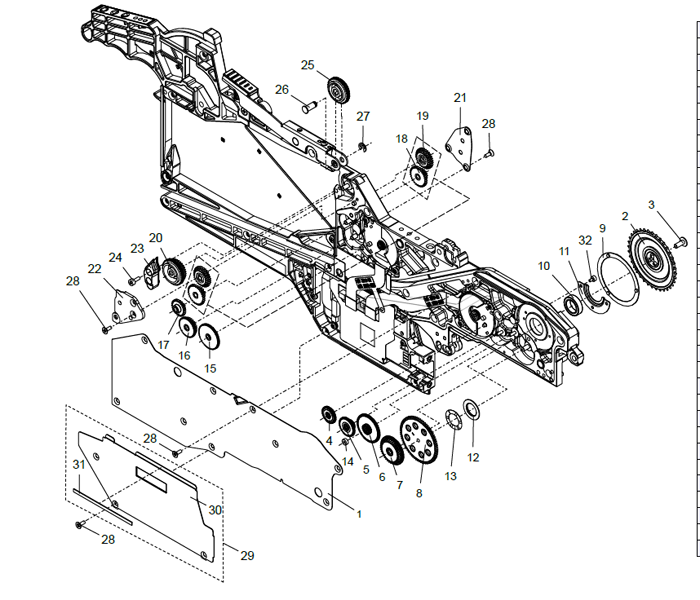

雅马哈电子喂料器分解图片序号25号
雅马哈SS款ZS款电动喂料器配件
日本原厂进口技术
品质有保证
微信/手机:13923705220
QQ:1006998092


NO Parts_No. Parts_Name Q_ty Remarks Change Compati
1 KLJ-MC102-00 COVER,FEEDER SIDE 1 1
2 KLJ-MC131-00 SPROCKET ASSY. 1
3 KHJ-MC13E-01 SCREW,SLIM HEAD 1
4 KLJ-MC1E1-00 GEAR,IDLE F1 ASSY. 1
5 KLJ-MC1E2-00 GEAR,IDLE F2 ASSY. 1
6 KLJ-MC1E3-00 GEAR,IDLE F3 ASSY. 1
7 KLJ-MC1E4-00 GEAR,IDLE F4 ASSY. 1
8 KLJ-MC138-00 GEAR,DRIVEN 1
9 KHJ-MC13A-00 SHIM,SPROCKET 1
10 KLJ-MC1E6-00 BEARING 1
11 KLJ-MC1E7-00 COVER,BEARING 1
12 KLJ-MC1E8-00 FRANGE,WASHER 1
13 KLJ-MC1E9-00 WAVE WASHER,D.G. 1
14 KLJ-MC13P-00 SPACER,F3 1
15 KHJ-MC151-00 GEAR,IDLE P1 1
16 KLJ-MC152-00 GEAR,IDLE P2 1
17 KLJ-MC153-00 GEAR,IDLE P3 1
18 KHJ-MC154-00 GEAR,IDLE P4 1
19 KHJ-MC155-00 GEAR,IDLE P5 1
20 KHJ-MC156-02 ROLLER, P/O 1 1
21 KHJ-MC158-00 COVER,IDLE GEAR 1 1
22 KHJ-MC159-00 COVER,IDLE GEAR 2 1
23 KHJ-MC166-02 BLOCK,P/O TOOTH 1 1
24 90112-2AJ006 BOLT, HEX.SOCKET HEAD 2
25 KHJ-MC169-02 ROLLER, P/O 2 1
26 KHJ-MC16A-00 SHAFT,P/O LEVER 1 1
27 90440-01J030 CIRCLIP 1
28 90990-09J008 SCREW,FLAT HEAD 17
29 KLJ-MC1AN-00 COVER,BOX EL ASSY. 1
30 KLJ-MC1A2-00 COVER,BOX EL 1
31 KLJ-MC1AP-00 TAPE,EL COVER 1
32 90115-02J003 BOLT, HEX. SOCKET HEAD 3
