SS 32MM 凹头螺栓六角

发布时间:2016-5-20 18:29:10   阅读:7129
SS 32MM 凹头螺栓六角
产品名称: SS 32MM 凹头螺栓六角
产品料号: 91312-03022
产品备注:

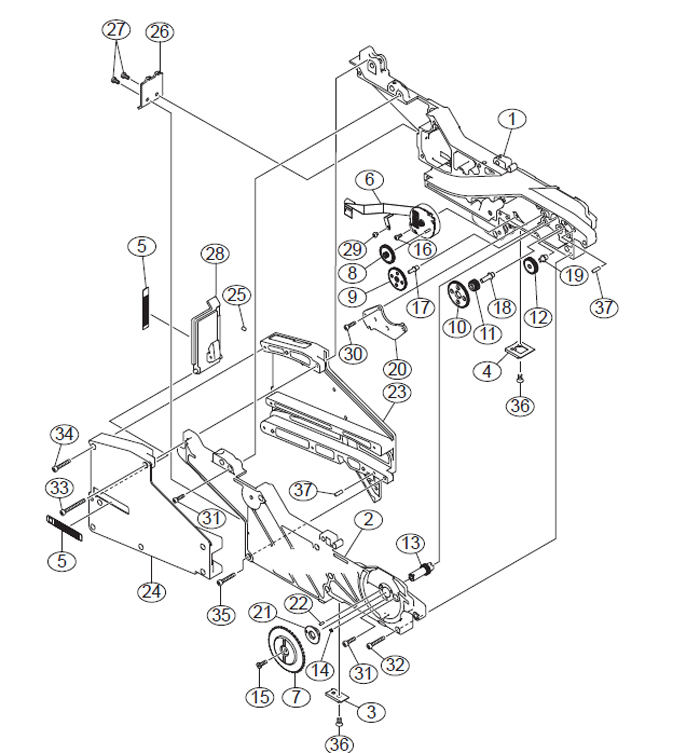

产 品 说 明


No. Part No. Part Name Q'ty Remarks
1 KHJ-MC501-00 BODY,FEEDER 1
2 KHJ-MC502-00 COVER,FEEDER 1
3 KHJ-MC106-00 PLATE,UNDER 1
4 KHJ-MC206-00 PLATE,UNDER 1
5 KHJ-MC50C-00 SEAL,MAIN LABEL 1
6 KHJ-MC510-00 MOTOR, FEED 1
7 KHJ-MC532-00 SPROCKET 1
8 KHJ-MC534-00 GEAR,IDLE F1 1
9 KHJ-MC535-00 GEAR,IDLE F2 1
10 KHJ-MC53R-00 GEAR,IDLE F3-1 1
11 KHJ-MC53S-00 GEAR,IDLE F3-2 1
12 KHJ-MC537-00 GEAR,IDLE F4 1
13 KHJ-MC538-00 GEAR,DRIVEN 1
14 KHJ-MC13D-00 SPRING,PUSHER PLATE 3
15 KHJ-MC53E-00 BOLT HEX.S/H LOW 1
16 90990-08J021 SCREW,STAD 2
17 KHJ-MC53H-00 SHAFT,IDLE GEAR F2 1
18 KHJ-MC53J-00 SHAFT,IDLE GEAR F3 1
19 KHJ-MC53K-00 SHAFT,IDLE GEAR F4 1
20 KHJ-MC53L-00 COVER,FEED GEAR 1
21 KHJ-MC53M-00 SUB-BUSH,SPROCKET 1
22 KHJ-MC53N-00 PIN,DOWEL 1
23 KHJ-MC561-00 BOX,TOP TAPE 1
24 KHJ-MC562-00 COVER,TOP TAPE BOX 1
25 KHJ-MC165-00 MAGNET,TAIL 1
26 KHJ-MC566-00 BLOCK,P/O TOOTH 1 1
27 KHJ-MC46T-00 BOLT HEX.S/H LOW 2
28 KHJ-MC56U-00 TAIL COVER ASSY. 1
29 90166-02JA03 SCREW,PAN HEAD 1
30 90115-2AJ008 BOLT HEX.SOCKET HEAD 3
31 91312-03012 BOLT,HEX.SOCKET HEAD 2
32 91312-03022 BOLT,HEX.SOCKET HEAD 5
33 91312-03030 BOLT,HEX.SOCKET HEAD 1
34 91317-03020 BOLT HEX.SOCKET HEAD 6
35 91317-03030 BOLT HEX.SOCKET HEAD 1
36 98707-03006 SCREW,FLAT HEAD 4
37 99480-03010 PIN,PARALLEL 8
