首页 - 产品中心 >>   雅马哈SS款配件 >> SS 12/16MM-72MM 齿轮盖

SS 12/16MM-72MM 齿轮盖

发布时间:2016-5-20 18:26:36   阅读:7846
SS 12/16MM-72MM 齿轮盖
产品名称: SS 12/16MM-72MM 齿轮盖
产品料号: KHJ-MC25E-00
产品备注:

产 品 说 明

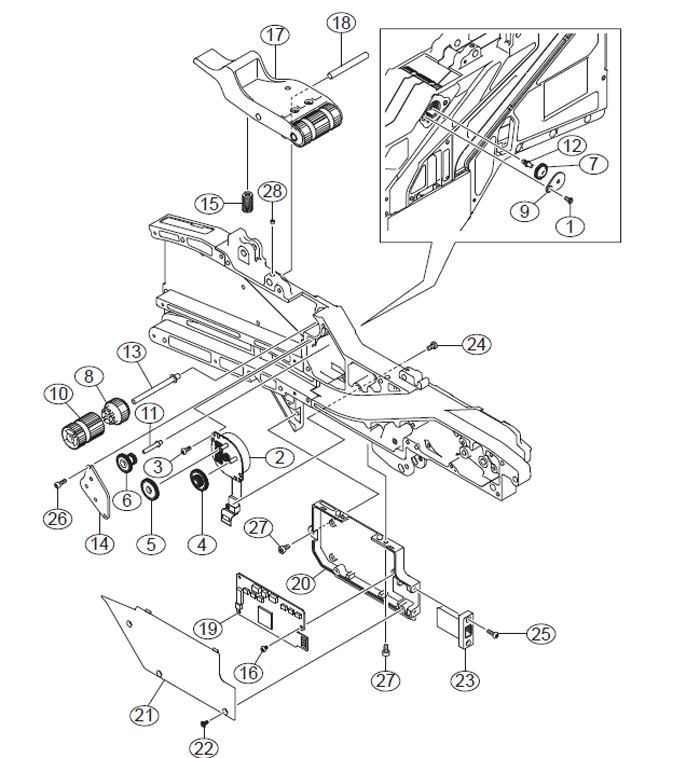

No. Part No. Part Name Q'ty Remarks
1 KHJ-MC10E-00 SCREW,FLAT HEXLOBE 1
2 KHJ-MC210-10 MOTOR, PEEL 1
3 90990-08J021 SCREW,STAD 2
4 KHJ-MC251-00 GEAR,IDLE P1 1
5 KHJ-MC252-00 GEAR,IDLE P2 1
6 KHJ-MC253-00 GEAR,IDLE P3 1
7 KHJ-MC254-00 GEAR,IDLE P4 1
8 KHJ-MC656-00 ROLLER,PEEL OFF 1 1
9 KHJ-MC258-00 COVER,IDLE GEAR 1 1
10 KHJ-MC65A-00 SUB-ROLLER,1 1
11 KHJ-MC25B-00 SHAFT,IDLE GEAR P3 1
12 KHJ-MC25C-00 SHAFT,IDLE GEAR P4 1
13 KHJ-MC65D-00 SHAFT,ROLLER 1 1
14 KHJ-MC25E-00 COVER,IDLE GEAR 3 1
15 KHJ-MC26E-00 SPRING,P/O LEVER 1
16 90990-54J004 SCREW,PAN HEAD TAP. 3
17 KHJ-MC66V-00 P/O LEVER ASSY. 1
18 KHJ-MC66B-001 SHAFT,P/O LEVER 2 1
19 KHJ-M4488-00 FEEDER BOARD ASSY 1
20 KHJ-MC1A1-00 BOX,EL 1
21 KHJ-MC1A2-00 COVER,BOX EL 1
22 KHJ-MC1A6-00 SCREW,FLAT HEXLOBE T 3
23 KHJ-MC1A9-00 CONNECTOR,BOARD 1
24 90166-02JA03 SCREW,PAN HEAD 1
25 90166-02JA08 SCREW PAN H.:M2.5X8 2
26 90115-2AJ008 BOLT HEX.SOCKET HEAD 2
27 91317-03006 BOLT HEX.SOCKET HEAD 3
28 92A08-03303 SET SCREW M3X3 1
