24MM 卷料此轮固定销

发布时间:2015-6-27 19:28:31   阅读:7783
24MM 卷料此轮固定销
产品名称: 24MM 卷料此轮固定销
产品料号: KHJ-MC43G-00
产品备注: 适用于雅马哈贴片机SS/ZS款电动智能送料器上

产 品 说 明

大量批发SS款ZS款电动飞达配件

已开发YAMAHA YS系列贴片机YSM系列贴片机飞达配件

YS12/YS24/YS88/YS100/YC8/YSM20/YSM40贴片机配件

SMT同行大量批发中!

厂家直销批发零售中!

欧洲品质,全球共享!

全球最低价!

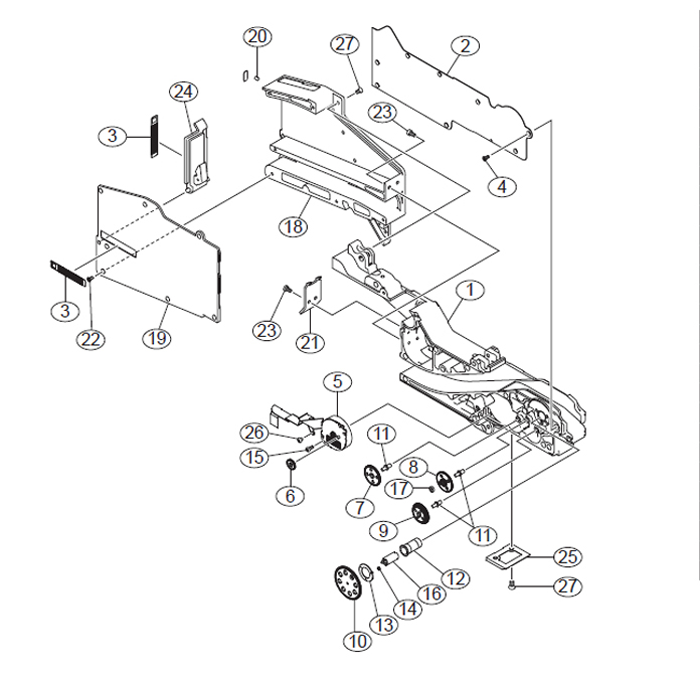

No. Part No. Part Name Q’ty Remarks Change Compati.
1
2 KHJ-MC202-00 COVER,FEEDER SIDE 1 1
3 KHJ-MC40C-00 SEAL,MAIN LABEL 1 *Attention
4 KHJ-MC10E-00 SCREW,FLAT HEXLOBE 11
5 KHJ-MC210-00 MOTOR, FEED 1
5-1 KHJ-MC210-01 MOTOR, FEED 1 (2011/4/13) NG
6 KHJ-MC134-00 GEAR,IDLE F1 1
7 KHJ-MC135-00 GEAR,IDLE F2 1
8 KHJ-MC136-01 GEAR,IDLE F3 1
9 KHJ-MC137-00 GEAR,IDLE F4 1
10 KHJ-MC238-00 GEAR,DRIVEN 1
11
12
13 KHJ-MC23C-00 PLATE,PUSHER GEAR 1
14 KHJ-MC13D-00 SPRING,PUSHER PLATE 3
15 KHJ-MC13F-00 SCREW,STAD 4
16 KHJ-MC43G-00 SHAFT,GEAR DRIVEN 1
17 KHJ-MC13P-00 SPACER,F3 1
18 KHJ-MC46Y-00 TOP TAPE BOX COMP. 1 With Magnet
19 KHJ-MC262-00 COVER,TOP TAPE BOX 1 Can not be sold
20 KHJ-MC165-00 MAGNET,TAIL 1
21 KHJ-MC466-00 BLOCK,P/O TOOTH 1 1
22 KHJ-MC16J-00 SCREW,FLAT HEAD 11
23 KHJ-MC46T-00 BOLT HEX.S/H LOW 4
24 KHJ-MC46U-00 TAIL COVER ASSY. 1 Can not be sold
25 KHJ-MC406-00 PLATE,UNDER 1
26 90166-02JA03 SCREW,PAN HEAD 2
27 98707-03006 SCREW,FLAT HEAD 5
28 KHJ-MC46U-S0 PARTS, TAIL COVER 1 *Attention
29 KHJ-MC462-S0 PARTS, BOX COVER 1 *Attention
