SS款12/16-72MM飞达卷料齿轮

SMT同行大量批发中。。。。。。。。

厂家直销批发零售中。。。。。。。。

本公司已开发雅马哈YS款电子送料器配件。

本公司大量批发YAMAHA SS款电动飞达配件。

适用于YAMAHA YS12/YS12F/YS12P/YS24/YS24X/YS88/YS100/YSM20/YSM40/YC8高速模块贴片机送料器上

日本原厂进口技术,品质有保证,与原厂寿命相同,价格全国最低。

欢迎来电咨询!欢迎SMT同行前来批发!

No. Part No. Part Name Q'ty Remarks
1 KHJ-MC10E-00 SCREW,FLAT HEXLOBE 11
2 KHJ-MC210-10 MOTOR, PEEL 1
3 KHJ-MC13F-00 SCREW,STAD 4
4 KHJ-MC251-00 GEAR,IDLE P1 1
5 KHJ-MC252-00 GEAR,IDLE P2 1

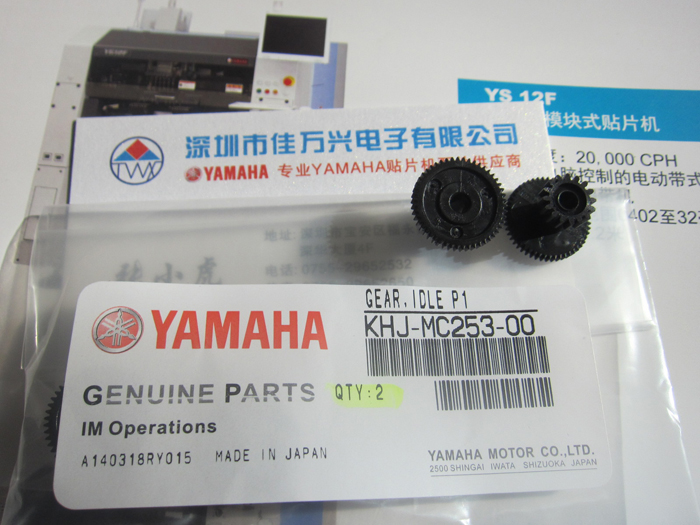

6 KHJ-MC253-00 GEAR,IDLE P3 1
7 KHJ-MC254-00 GEAR,IDLE P4 1
8 KHJ-MC256-00 ROLLER,PEEL OFF 1 1
9 KHJ-MC258-00 COVER,IDLE GEAR 1 1
10 KHJ-MC259-00 COVER,IDLE GEAR 2 1
11 KHJ-MC25A-00 SUB-ROLLER,1 1
12 KHJ-MC25B-00 SHAFT,IDLE GEAR P3 1
13 KHJ-MC25C-00 SHAFT,IDLE GEAR P4 1
14 KHJ-MC25D-00 SHAFT,ROLLER 1 1
15 KHJ-MC25E-00 COVER,IDLE GEAR 3 1
16 KHJ-MC26E-00 SPRING,P/O LEVER 1
17 KHJ-MC16H-00 SCREW,PAN HEAD TAP. 3
18 KHJ-MC26V-00 P/O LEVER ASSY. 1
19 KHJ-MC1A1-00 BOX,EL 1
20 KHJ-MC1A2-00 COVER,BOX EL 1
21 KHJ-MC1A6-00 SCREW,FLAT HEXLOBE T 3
22 KHJ-MC1A9-00 CONNECTOR,BOARD 1
23 KHJ-M4488-00 FEEDER BOARD ASSY 1
24 90115-2AJ008 BOLT HEX.SOCKET HEAD 2
25 90166-02JA03 SCREW,PAN HEAD 2
26 90166-02JA08 SCREW PAN H.:M2.5X8 2
27 91317-03006 BOLT HEX.SOCKET HEAD 3
28 92A08-03303 SET SCREW M3X3 5
29 99480-05018 PIN,PARALLEL 1
