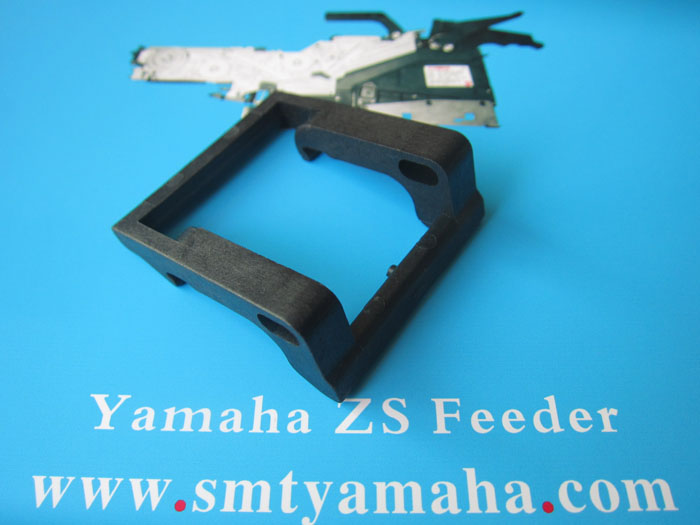

32MM前端压料扣子

SMT同行大量批发中。。。。。。。。

本公司已开发雅马哈YS款电子送料器配件。

本公司大量批发YAMAHA SS款电动飞达配件。

日本原厂进口技术,品质有保证，与原厂寿命相同,价格全国最低。

欢迎来电咨询!欢迎SMT同行前来批发!

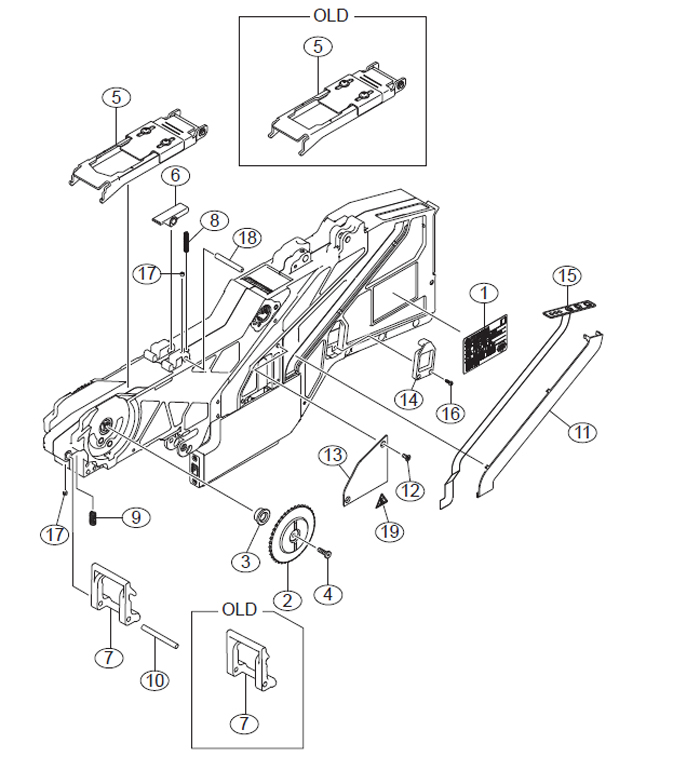

No. Part No. Part Name Q'ty Remarks
1 KHJ-MC103-02 BLOCK,FRONT 1
2 KHJ-MC104-00 RAIL,UNDER 1
3 KHJ-MC105-00 PIN,TAIL 1
4 KHJ-MC10F-00 SCREW,FLAT HEAD 2
5 KHJ-MC53N-00 PIN,DOWEL 1
6 90990-09J008 SCREW,FLAT HEAD 2
7 KHJ-MC281-00 HANDLE 1
8 KHJ-MC182-00 TENSION,WIRE 1 1
9 KHJ-MC183-00 SPACER,TENSION 1 1
10 KHJ-MC184-00 SPACER,TENSION 2 1
11 KHJ-MC286-00 WIRE,UNCLAMP 1
12 KHJ-MC187-00 SPRING,TENSION 1
13 KHJ-MC289-00 PIN,CLAMP 1
14 KHJ-MC18A-00 SPRING,CLAMP 1
15 KHJ-MC28B-00 COVER,WIRE 1 1
16 KHJ-MC58G-00 SHAFT,HANDLE SUPPORT 1
17 KHJ-MC28H-00 CLAMP LEVER ASSY. 1
18 90990-14J001 CIRCLIP (E) 1
19 90189-05J056 NUT,HEXAGON 1
20 90440-01J030 CIRCLIP(E) 1
21 91317-03008 BOLT HEX.SOCKET HEAD 4
22 91317-05016 BOLT HEX.SOCKET HEAD 1
23 92A08-03303 SET SCREW M3X3 1
24 92A08-03305 SCREW,SET 1
25 99480-03010 PIN,PARALLEL 2
26 99480-04018 PIN,PARALLEL 1
27 99480-05014 PIN,PARALLEL 1
28 KHJ-MC10S-00 PIN,LOCATE 1 1
29 KHJ-MC10T-00 PIN,LOCATE 2
